Questão 3

Gabarito oficial: C. ← 2 4 →

A questão

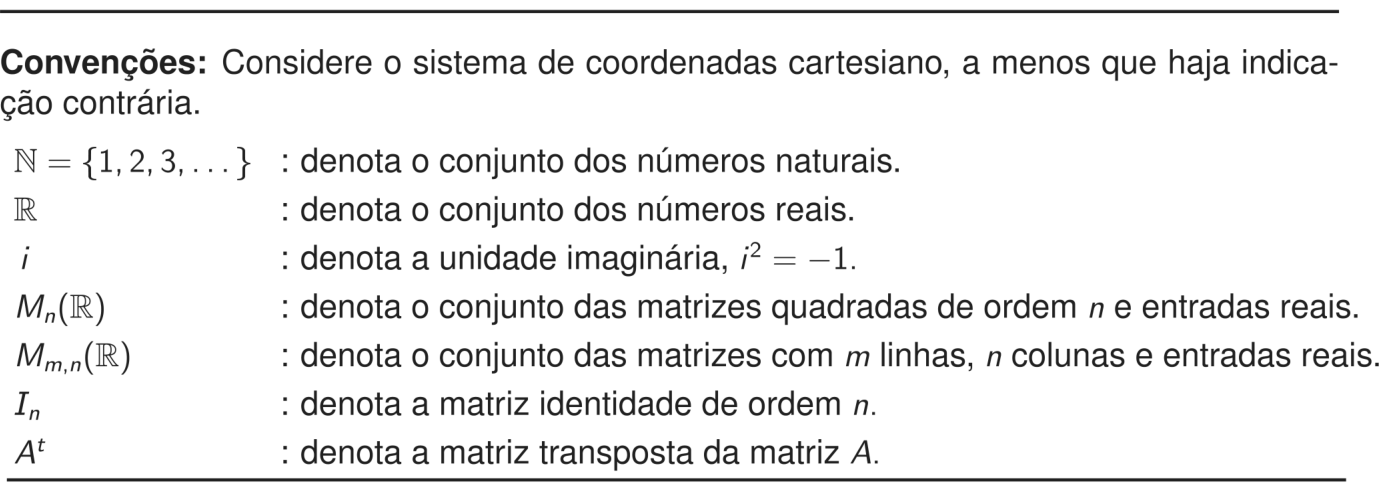

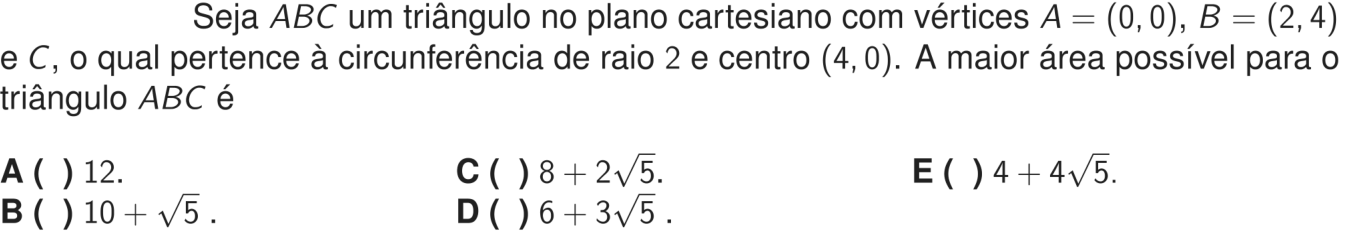

Texto de apoio da questão 3 Questão 3

Respostas das IAs

GPT-6 Astra

C

Respondeu

levou 14 s

Como pensou
**Calculating distance and area** I need to solve a geometry problem involving length AB, where it’s related to the square root of 20 and 2√5. The equation seems to be about finding the distance from a center, which is 8/√5. The maximum height appears to be 8/√5 + 2, implying an area calculation that involves √5 and height. I'll explain the maximum distance of a circle's center plus radius along a perpendicular outward. I need to provide clear formulas for this.

Como a base AB é fixa, a área será máxima quando a distância de C à reta AB for máxima.

A reta que passa por A=(0,0) e B=(2,4) tem equação 2x-y=0, e o comprimento da base é

AB=\sqrt{2^2+4^2}=2\sqrt5.

A distância do centro O=(4,0) da circunferência à reta AB é

d=\frac{|2\cdot4-0|}{\sqrt{2^2+(-1)^2}}=\frac8{\sqrt5}.

A maior distância de um ponto da circunferência à reta é d+2, atingida na direção perpendicular à reta, no sentido que se afasta dela. Assim,

\text{Área}_{\max} =\frac12\cdot2\sqrt5\left(\frac8{\sqrt5}+2\right) =\boxed{8+2\sqrt5}.

Resposta: C

GPT-6.1 Sol

C

Respondeu

levou 14 s

Como pensou

Como a base AB é fixa, a área máxima corresponde à maior distância de C à reta AB.

O comprimento da base é

|AB|=\sqrt{2^2+4^2}=2\sqrt5,

e a reta que passa por A=(0,0) e B=(2,4) tem equação

2x-y=0.

A distância do centro O=(4,0) da circunferência a essa reta é

d=\frac{|2\cdot4-0|}{\sqrt{2^2+(-1)^2}} =\frac8{\sqrt5}.

Como a circunferência tem raio 2, a maior altura possível é

h_{\max}=\frac8{\sqrt5}+2,

atingida no ponto da circunferência mais afastado da reta, na direção perpendicular a ela.

Logo,

\text{Área}_{\max} =\frac12\cdot2\sqrt5\left(\frac8{\sqrt5}+2\right) =\boxed{8+2\sqrt5}.

Resposta: C

GPT-6 Luna

C

Respondeu

levou 13 s

Como pensou
**Calculating triangle area** I need to solve a geometry problem related to triangle ABC within a circle. The points A and B are given, and C lies on a specific circumference defined by a center and radius. The maximum area of the triangle is obtained from the determinant formula for area calculation. I’ll parameterize point C in polar coordinates to express the area and find the maximum using the linear functional derived from the triangle's configuration. Additionally, I'll explain the constraints influencing point C and the linear functional extremes. Finally, I'll format the solution in Portuguese.**Determining bounds for maximum** I’m noting that the lower endpoint is -8 - 2√5, while the upper endpoint is -8 + 2√5, which is still negative since 2√5 is approximately 4.47 and less than 8. This confirms that the maximum absolute value indeed leans towards choice C, reinforcing that it correctly represents the constraints of our problem. So yeah, that's my conclusion for the maximum values now!

Seja C=(x,y). A área do triângulo é

\frac12\left|\det\begin{pmatrix}2&4\\x&y\end{pmatrix}\right| =|y-2x|.

Como C pertence à circunferência de centro (4,0) e raio 2, podemos escrever

x=4+2\cos t,\qquad y=2\sin t.

Logo,

y-2x=-8+2(\sin t-2\cos t).

A expressão \sin t-2\cos t varia entre -\sqrt5 e \sqrt5. Assim, y-2x varia entre -8-2\sqrt5 e -8+2\sqrt5; portanto, seu maior valor absoluto é 8+2\sqrt5.

Resposta: C

Claude Fable 5.1

C

Respondeu

levou 11 s

Como pensou

A reta AB passa por (0,0) e (2,4): equação 2x − y = 0, com |AB| = √(4+16) = 2√5.

A distância do centro (4,0) da circunferência à reta AB é
d = |2·4 − 0|/√5 = 8/√5.

O ponto C da circunferência mais distante da reta AB fica a uma distância máxima
d_max = 8/√5 + 2 (raio).

Área máxima:
S = ½ · |AB| · d_max = ½ · 2√5 · (8/√5 + 2) = √5 · (8/√5 + 2) = 8 + 2√5.

Resposta: C

Claude Opus 5.5

C

Respondeu

levou 12 s

Como pensou
Line AB is 2x - y = 0, so the distance from center (4,0) is 8/√5, giving a max distance of 8/√5 + 2. With AB = 2√5, the area works out to (1/2)(2√5)(8/√5+2) = 8 + 2√5, so the answer is C.

Resposta: C

A área é (1/2)·base·altura. Tomando AB como base, basta maximizar a distância de C à reta AB.

Base AB:
AB = √((2−0)² + (4−0)²) = √20 = 2√5.

Reta AB:
A reta passa por (0,0) e (2,4), logo y = 2x, ou seja, 2x − y = 0.

Distância do centro (4, 0) à reta:
d = |2·4 − 0| / √(2² + 1²) = 8/√5.

Altura máxima:
C percorre a circunferência de centro (4, 0) e raio 2. A maior distância de C à reta é a distância do centro mais o raio: h_max = 8/√5 + 2.

Área máxima:
Área = (1/2)·(2√5)·(8/√5 + 2) = √5·(8/√5 + 2) = 8 + 2√5.

Resposta: C

Claude Sonnet 5.5

C

Respondeu

levou 9 s

Como pensou

Os vértices A = (0,0) e B = (2,4) são fixos, então a área do triângulo é máxima quando C está o mais longe possível da reta AB.

Reta AB: passa pela origem com coeficiente angular 2, logo y = 2x, ou seja, 2x − y = 0.

Base: |AB| = √(4 + 16) = √20 = 2√5.

Distância do centro à reta: o centro é (4,0), então

d = |2·4 − 0| / √5 = 8/√5.

Altura máxima: como o raio é 2, a maior distância de C à reta é

h = 8/√5 + 2.

Área máxima:

Área = ½ · 2√5 · (8/√5 + 2) = √5 · (8/√5 + 2) = 8 + 2√5.

Isso corresponde à alternativa C.

Resposta: C

Grok 4.7

C

Respondeu

levou 56 s

Como pensou
The problem is in Portuguese. I will translate it. The problem asks for the maximum area of triangle ABC with vertices A=(0,0), B=(2,4), and C on a circle centered at (4,0) with radius 2. The area formula simplifies to (1/2)|2·Cy − 4·Cx| since A is the origin. I will maximize this expression subject to the constraint that C lies on the given circle. Parametrizing the circle gives f = 2 sin θ − 4 cos θ − 8. The range of sin θ − 2 cos θ is [−√5, √5], so the expression lies between −√5−4 and √5−4. Since √5 ≈ 2.236, the maximum value of |f| is √5 + 4. The maximum area is 8 + 2√5, which corresponds to option C. I am now double-checking the area formula. The area formula is confirmed. The maximum value of 8 + 2√5 is achievable, and I am now looking for a geometric interpretation. The geometric interpretation is now clear. The area equals the base AB times the height from C to the line AB, so it is maximized when C is the point on the circle farthest from that line. The distance from the center (4,0) to the line 2x − y = 0 is 8/√5, and adding the radius gives the maximum height. The center (4,0) lies on the positive side of the line y = 2x. The distance from the center to the line is 8/√5 ≈ 3.577, which exceeds the radius of 2. Therefore all points on the circle lie on the same side of the line AB.

A área do triângulo ABC com A na origem é dada por

\frac12\bigl|2y-4x\bigr|=|2x-y|,

onde C=(x,y). Equivalentemente, fixando a base AB de comprimento 2\sqrt5, a área é \frac12\cdot2\sqrt5 vezes a distância de C à reta AB (de equação 2x-y=0).

O centro (4,0) da circunferência dista 8/\sqrt5>2 dessa reta, de modo que a circunferência jaz inteiramente de um mesmo lado da reta. A maior distância de um ponto da circunferência à reta é portanto

\frac8{\sqrt5}+2.

A área máxima correspondente vale

\sqrt5\Bigl(\frac8{\sqrt5}+2\Bigr)=8+2\sqrt5.

(O mesmo valor é obtido parametrizando x=4+2\cos\theta, y=2\sin\theta e maximizando |2x-y|.)

Resposta: C

DeepSeek V4.1 Flash

C

Respondeu

levou 13 s

Como pensou
We need answer in Portuguese, solve. Need infer from images. Problem: "Seja ABC um triângulo no plano cartesiano com vértices A=(0,0), B=(2,4) e C, o qual pertence à circunferência de raio 2 e centro (4,0). A maior área possível para o triângulo ABC é" Options: A 12 B 10 + sqrt5 C 8 + 2 sqrt5 D 6 + 3 sqrt5 E 4 + 4 sqrt5 Need find max area with C on circle center (4,0), radius 2. A=(0,0), B=(2,4). C any point on circle (x-4)^2 + y^2 = 4. Area triangle ABC = 1/2 * base AB length * perpendicular distance from C to line AB. Since A,B fixed, max area when distance from C to line AB maximized. Base length fixed. Need maximize distance from C to line AB, where C lies on circle. The distance from a point on a circle to a line is maximized at farthest intersection of normal? Actually distance from center O=(4,0) to line AB plus radius maybe? Max distance from C to line = distance from center to line + radius, if line not intersect? Wait distance from point C to line AB, if C lies on circle, maximum absolute distance = distance from center to line + radius (achieved at point on circle farthest from line along normal direction). Yes because distance to line is affine? Actually signed distance = n·C - c. Since C = O + r u, max n·C = n·O + r (if n is unit normal). Thus max distance = (n·O - c)+ r = signed_distance(O to line) + r, if choose sign such that positive. Minimum = signed_distance(O to line) - r maybe absolute. Since area uses positive distance. So max distance = |distance from center O to line AB| + 2. Need compute distance from O=(4,0) to line through A=(0,0), B=(2,4). Line AB: direction (2,4) = (1,2). Equation? Through origin slope 2: y = 2x -> 2x - y = 0. Distance from (4,0) to line 2x - y =0: |2*4 - 0| / sqrt(2^2 + (-1)^2) = 8/sqrt5. Then max distance = 8/sqrt5 + 2. Base AB length = sqrt(2^2+4^2)=sqrt20=2 sqrt5. Area max = 1/2 * 2 sqrt5 * (8/sqrt5 + 2) = sqrt5 * (8/sqrt5 + 2) = 8 + 2 sqrt5. Option C. Need provide reasoning. Check if any subtlety: C on circle maybe any point, triangle nondegenerate? maximum area positive. So answer C. Need craft final in Portuguese. Include steps. End with "Resposta: C". Ensure no extra after.

A área do triângulo ABC é dada por

[ABC]=\frac12 \cdot AB \cdot d(C,AB),

onde d(C,AB) é a distância do ponto C à reta AB.

Como A=(0,0) e B=(2,4) são fixos, o comprimento AB é constante:

AB=\sqrt{(2-0)^2+(4-0)^2}=\sqrt{4+16}=\sqrt{20}=2\sqrt5.

A reta AB passa pela origem e tem direção (2,4), ou seja, coeficiente angular 2, logo sua equação é

y=2x \quad\Longrightarrow\quad 2x-y=0.

O centro da circunferência é O=(4,0) e o raio é 2. A distância do centro O à reta AB é

d(O,AB)=\frac{|2\cdot 4-0|}{\sqrt{2^2+(-1)^2}} =\frac{8}{\sqrt5}.

Para maximizar a área, devemos maximizar a distância de C à reta AB. Como C pertence à circunferência de centro O e raio 2, a maior distância possível é

d_{\max}=d(O,AB)+2=\frac{8}{\sqrt5}+2.

Assim, a maior área possível é

[ABC]_{\max} =\frac12 \cdot (2\sqrt5)\cdot \left(\frac{8}{\sqrt5}+2\right) =\sqrt5\left(\frac{8}{\sqrt5}+2\right) =8+2\sqrt5.

Portanto, a alternativa correta é a C.

Resposta: C

Gemini 3.8 Flash

C

Respondeu

levou 21 s

Como pensou
**Exploring Triangle Area** I'm currently analyzing the geometric constraints for triangle ABC. My focus is on determining the maximum possible area, given vertex A at the origin, vertex B at (2, 4), and vertex C situated on a circle with center (4, 0) and radius 2. **Maximizing Triangle Area** I'm refining the calculation for the triangle's area. My current path involves determining the maximum height of vertex C from the line segment AB, utilizing the circle's parameters.

Para determinar a maior área possível para o triângulo ABC, podemos usar a fórmula da área a partir das coordenadas dos vértices ou a relação entre base e altura.

  1. Equação da reta suporte do segmento AB:
    Os vértices A e B têm coordenadas A = (0, 0) e B = (2, 4).
    A reta r que passa por A e B tem inclinação:

    m = \frac{4 - 0}{2 - 0} = 2

    Portanto, a equação geral da reta r é:
    2x - y = 0

  2. Comprimento da base AB:

    d(A, B) = \sqrt{(2 - 0)^2 + (4 - 0)^2} = \sqrt{4 + 16} = \sqrt{20} = 2\sqrt{5}

  3. Área do triângulo em função da altura h:
    Sendo h a distância do vértice C à reta r, a área do triângulo ABC é dada por:

    \text{Área} = \frac{1}{2} \cdot \text{base} \cdot h = \frac{1}{2} \cdot (2\sqrt{5}) \cdot h = \sqrt{5} \cdot h

  4. Maximização da altura h:
    O ponto C pertence à circunferência de centro O = (4, 0) e raio R = 2.
    A distância máxima de um ponto de uma circunferência a uma reta externa é dada pela distância do centro da circunferência à reta somada ao raio:

    h_{\max} = d(O, r) + R

    Calculando a distância do centro O(4, 0) à reta r: 2x - y = 0:

    d(O, r) = \frac{|2(4) - 0|}{\sqrt{2^2 + (-1)^2}} = \frac{8}{\sqrt{5}}

    Logo:

    h_{\max} = \frac{8}{\sqrt{5}} + 2

  5. Maior área possível:

    \text{Área}_{\max} = \sqrt{5} \cdot h_{\max} = \sqrt{5} \left( \frac{8}{\sqrt{5}} + 2 \right) = 8 + 2\sqrt{5}

Resposta: C
