Questão 9 (Matemática)

**Evaluating geometric properties** I need to clarify that I don't necessarily have to explicitly state that the pyramid is isosceles. It's already implied that SM is perpendicular to BC, which plays a role in the vertical plane concerning height. I should show that trace SM is parallel to the plane because π is parallel to SBC, and there's a common plane SMN where these intersections are parallel. I must state this clearly and ensure my final answer is precise.

**Analyzing geometric dimensions** I'm breaking down the geometric aspects here. I've got a lateral face that needs calculation, with an apex at 30, a base of 4, and a height determined by some cotangent values. I’m checking the area found as well. Next, I should clarify heights and edge lengths through various formulas while also considering the trapezoid formed. I need to mention midpoints and parallel bases and possibly proving these aspects using lines and planes. It's getting a bit complex, but I think I can manage it!

**Analyzing plane intersection** I'm considering how the plane intersects the boundary, likely at the face over EF. It seems like it's parallel to that face, which is interesting, especially since face EF has the equation y = -2√3. Its plane equation includes z = h + h*y/(2√3) evaluated at -2√3 for z0, with a slope of +h/(2√3). I’m curious about how these elements relate, and if I’ve got the right interpretation here.**Solving geometry problems** I'm working on a geometry problem involving a regular hexagon with a side length of 4. I need to calculate the height and ensure the plane equation is correct for face SBC. I’m using coordinates and doing some translations to find intersections at edges SE and SF. I'm focusing on the math to see if the equations I've formed—especially involving parameters and heights—hold true. I want to make sure everything checks out correctly!**Explaining trapezoid section** I'm diving into the trapezoid section with parallel bases measuring 8 and 2. The height is the distance from base diagonal AD to the segment connecting midpoints M_E and M_F. Their displacement in the yz-plane is (0,-√3,h/2). The distance in the section plane is expressed as sqrt(3+h²/4). Since M_E M_F is parallel to AD, I’m figuring out the shortest connector, ensuring coordinates align correctly. After some calculations, I find that the area works out to be 5(2 + √3).**Analyzing lateral faces** I'm considering whether there's another lateral face parallel to the plane through the major diagonal, only if the face's direction aligns with that diagonal. In a hexagonal structure, there are two edges (BC and EF) that run parallel, creating symmetric possibilities, resulting in the same section area. I'll need to address this by symmetry, perhaps focusing on the face over BC. I want to establish consistent vertex labels, setting the base center at O, the apex at S, and working with the coordinates effectively in the geometry setup.**Exploring the cross-sectional plane** I’m looking at plane Π, which is parallel to AD, and thinking about how it intersects to derive the height of the trapezoid. I also want to prove that the section forms a quadrilateral since the plane cuts through the base along AD and interacts with the slant edges SE and SF. This creates a quadrilateral shape. It's fascinating how the plane intersects the edges and faces, resulting in a polygon that connects all these points in the convex pyramid.**Calculating geometrical relations** I'm working on the equation for a plane parallel through point AD, where z + h y/(2√3) = 0. I need to consider points AD where y and z equal 0, and find the intersection on the midpoint between SE and SF. I'll compute using the slant edge length and the angle relation. Also, the apex angle is 30 degrees, and the side length is linked to sine relations. My answer might be around 10 + 5√3. Let's see how it unfolds!

I'm setting up a right hexagonal pyramid with base side 4, where each lateral face is isosceles with apex angle 30°. Using the half-angle relation, I find the lateral edge length L = 2(√6+√2) by solving 4 = 2L sin15° with sin15° = (√6−√2)/4. With L² computed, I get the apex height h via h² = L² − 16, giving h = 4√(1+√3). I'm placing coordinates for the hexagon vertices and apex, then identifying that the cutting plane passes through diagonal A1A4 and must be parallel to the lateral face VA2A3 (since edge A2A3 is parallel to that diagonal). I'm working out the normal vector of that face and deriving the plane equation through A2 to match the required parallelism. Now I'm finding where this parallel plane, which also passes through the x-axis diagonal A1A4, intersects the pyramid — it cuts through on the side opposite A2A3, toward A5A6, so the section polygon consists of A1, A4, and intersection points with edges VA5 and VA6. I'm parametrizing edge VA5 and plugging into the plane equation to solve for the intersection parameter t. Solving gives t = 1/2, meaning the intersection point lies exactly at the midpoint of VA5, and by symmetry the same holds for VA6 — so the section is a trapezoid formed by A1, A4, and these two midpoints, with A1A4 = 8 as the longer parallel side and the midpoint segment as the shorter side of length 2. Now I'm computing the height of this trapezoid as the distance between the two parallel lines, using the Pythagorean-style distance formula combining the y-offset and the z-height difference. The expression under the square root simplifies nicely to (2+√3)² since that squares out to 7+4√3, confirming the height is exactly 2+√3. Multiplying by the average of the parallel sides gives the trapezoid's area as 5(2+√3) = 10+5√3, and I double-check this against the slant height of the lateral face, which comes out to twice this same value as expected from the midline relationship — so everything is consistent and I'm ready to write up the solution.

I'm working out the pyramid's lateral edge length from the hexagon's side and apex angle, finding L²=32+16√3, then using that to compute the pyramid's height h²=16+16√3. Now I'm setting up the cross-section through the main diagonal to analyze the cutting plane. Setting coordinates for the hexagon vertices and apex, I identify that the plane must be parallel to face VBC (opposite the diagonal), which forces the section onto the EF side. Checking where this plane intersects edge VF, I find it crosses exactly at the midpoint. The section forms a trapezoid A-M_F-M_E-D, with AD=8 as one base and the segment joining midpoints of VE and VF as the other, length 2. Computing the distance between these parallel lines in the yz-plane gives the trapezoid's height as 2+√3. So the area is the average of the bases times the height: (8+2)/2 · (2+√3) = 10+5√3.

I'm setting up the hexagonal pyramid with base side 4, finding the lateral edge length from the apex angle of π/6 using the half-angle formula, giving L = 2(√6+√2). Now I'm computing the pyramid's height using the Pythagorean relation between L and the distance from center to vertex. I'm identifying the section plane through the long diagonal AD that's parallel to the opposite lateral face VBC, using the symmetry of the hexagon (since BC is parallel to AD). I'm setting up coordinates with the base vertices and apex V, defining the plane through AD using the direction toward the BC-to-apex slope, parameterized through the midpoint M of BC and apex V. I'm now tracking where this plane, which rises toward the EF side, exits the pyramid — checking whether it crosses edges VE, VF, or intersects the opposite face VEF, by comparing the plane equation against the equation for face VEF. Solving the intersection gives a segment at y=-√3, z=h/2, which turns out to be the midline of triangle VEF with length 2 (half of EF=4), with endpoints at the midpoints of VE and VF. So the cross-section is a trapezoid formed by A, D, and these two midpoints, with parallel sides AD=8 and the midline=2 — confirming the midpoint of VF at (1,-√3,h/2) sits correctly on edge VF. Computing the trapezoid's height as the distance between the two parallel sides gives √(7+4√3) = 2+√3, so the area works out to (8+2)/2 · (2+√3) = 10+5√3.

The problem is in Portuguese. I will translate it. I'm analyzing a right pyramid with a regular hexagonal base of side 4. The lateral faces are isosceles triangles with vertex angle π/6. I need to find the area of a plane section that passes through the major diagonal of the base and is parallel to one lateral face. Using the law of cosines in triangle VAB, I found the lateral edge length l satisfies l² = 16/(2 − √3). Rationalizing the lateral edge length gives l = 4√(2 + √3). The apothem of the hexagon is 2√3. I'm now finding the pyramid height VO. In triangle VMA, where M is the midpoint of AB, AM = 2 and angle VMA = 90°. Using sin(15°) = 2/l and cos(15°) = VM/l gives the slant height VM. The slant height VM is 4 + 2√3. The pyramid height h is 4√(1 + √3). I am now analyzing the plane section that passes through a major diagonal and is parallel to a lateral face. The major diagonals of the hexagon are A1A4, A2A5, and A3A6, each with length 8. The section passes through one such diagonal and is parallel to a lateral face. I am setting up a coordinate system with the hexagon centered at the origin. I have placed vertices A, B, C, D, and E in the xy-plane to precisely model the pyramid geometry. I placed vertex F at (2, −2√3, 0). The six lateral faces are VAB, VBC, VCD, VDE, VEF, and VFA. I am now focusing on the section plane passing through the major diagonal AD along the x-axis. I am determining which lateral face can be parallel to the plane passing through the major diagonal AD. Two planes are parallel if their normal vectors are parallel, so I am checking whether the plane containing AD can be parallel to a specific face such as VBC. For a plane containing the major diagonal AD to be parallel to a lateral face, the diagonal must be parallel to that face. This means the direction of AD lies in the directions parallel to the face. I confirmed that if the major diagonal AD is parallel to a lateral face σ, then exactly one plane containing AD can be parallel to σ. The direction vector of AD must be perpendicular to the normal of σ. I am now checking which lateral faces are parallel to the major diagonal AD. I will compute the normal vectors of each face and verify whether the direction vector of AD is perpendicular to them. I am computing the normal vector of face VBC. The cross product of vectors (2, 2√3, −h) and (−2, 2√3, −h) yields a normal of (0, 4h, 8√3). I will now check whether this normal is perpendicular to the direction vector of diagonal AD. The normal vector of face VBC simplifies to (0, h, 2√3). The dot product with the direction vector of diagonal AD is zero. Therefore AD is parallel to plane VBC. The plane equation for the section is h y + 2√3 z = 2√3 h. Since points on AD satisfy y = 0 and z = 0, they do not satisfy this equation. This confirms that the major diagonal AD is parallel to the plane VBC. By symmetry, face VEF may also be parallel to the same plane. The section plane is parallel to face VBC and passes through the major diagonal AD. Face VEF was considered but set aside. The plane containing the major diagonal AD and parallel to face VBC has equation h y + 2√3 z = 0. I am now checking whether this plane intersects the pyramid properly, since for positive y values it would require negative z, which may not be valid within the pyramid's bounds. The plane h y + 2√3 z = 0 lies below the base and extends downward, so it does not intersect the pyramid's upper portion. Since face VBC has positive y coordinates, the parallel plane on the opposite side of the pyramid is the one that actually cuts through the solid. The plane h y + 2√3 z = 0 intersects the pyramid's interior only for negative y values, producing a cross-section at height z. I am now checking whether face VAB is also parallel to the major diagonal AD. I am now finding the intersection of the plane with the pyramid's lateral edges to determine the section. The plane tilts toward negative y and passes through the major diagonal AD on the boundary. I am checking whether edge VA lies on this plane and where it intersects. The plane intersects edge VA only at vertex A. I will parametrize all six lateral edges to find their exact intersections with the plane and determine the section polygon. Edge VD also intersects the plane only at vertex D. Edge VB never intersects the plane, since the equation evaluates to 2√3 h for all parameter values. I am now parametrizing edge VC to find its intersection with the section plane. Edge VC also fails to intersect the plane. Edge VE intersects at point M_e = (-1, -√3, h/2). Edge VF intersects at s = 1/2. I found the intersection point M_f = (1, −√3, h/2) on edge VF. The plane intersects only four points: A, D, M_e, and M_f. I am now determining the correct order of these vertices to form the section polygon. The plane intersects the pyramid's interior along edges VF and VE, and contains the base edge AD. Since the pyramid is convex, the section polygon has vertices at the intersection points with its edges. The vertices are A, D, M_f, and M_e. I am now verifying whether AD counts as an edge of the base. AD is a diagonal of the base face, not an edge of the pyramid. The section polygon's vertices must be where the plane intersects the polyhedron's edges. I am now checking which base edges intersect the plane. I checked the remaining base edges. Only edges FA, CD, and DE contain points where y = 0, so they intersect the plane only at vertices A and D. Edges BC and EF do not intersect the plane at all. The section polygon therefore has exactly four vertices: A, D, M_f, and M_e. I am reconsidering whether the diagonal AD belongs to the section polygon's boundary. Since the plane passes through A and D, and AD lies on the base face, I need to determine if it counts as an edge of the pyramid. The diagonal AD lies on the base face, so it is part of the section polygon's boundary. The vertices of the cross-section are A, D, M_e, and M_f. I am verifying whether the segment connecting M_e and M_f lies on face VEF. This will confirm the exact edges of the section polygon. The segment connecting M_e and M_f lies inside face VEF. Both points are at the same height z = h/2, midway along edges VE and VF from vertex V. M_e and M_f are midpoints of edges VE and VF. The segment Me Mf is parallel to EF and half its length, lying entirely inside face VEF. I am checking whether the plane intersects face VFA. Since M_f lies on edge VF and A lies on edge VA, the segment M_f A may be part of the intersection with that face. I am checking whether the line M_f A lies on face VFA. Since both points belong to the section plane, I need to verify if this line also satisfies the equation of face VFA. The segment M_f A lies inside face VFA. The segment D M_e lies inside face VED. The diagonal AD lies on the base face. The section polygon is the quadrilateral A M_f M_e D. It is convex and its interior lies inside the pyramid. The quadrilateral A M_f M_e D is a trapezoid. The parallel sides AD and M_f M_e have lengths 8 and 2, respectively. I need the height of the trapezoid to compute its area. I will use vector methods or divide the quadrilateral into triangles. I am computing the perpendicular distance between the two parallel sides of the trapezoid. The vector from A to M_f is (-3, -√3, h/2). I will use this to find the height of the trapezoid. The trapezoid area equals the average of its parallel sides multiplied by their perpendicular distance. The two parallel lines are AD and M_f M_e, both directed along (1,0,0). A connecting vector between them is (0, -√3, h/2). The perpendicular distance is the length of the cross product of this vector with the direction vector, divided by the direction vector's length. The perpendicular distance between the parallel sides is d = √(h²/4 + 3). Substituting h² = 16(1 + √3) gives d = √(7 + 4√3). The trapezoid area is therefore 5√(7 + 4√3). I am checking whether this expression can be simplified further. The expression √(7 + 4√3) simplifies to 2 + √3. The trapezoid area is therefore 10 + 5√3. I am second-guessing the area of 10 + 5√3. I will verify it by computing the cross product of the quadrilateral's vectors. I am now verifying the trapezoid area by splitting the quadrilateral into two triangles, A M_f M_e and A M_e D, or by using a vector cross-product formula. I am computing the area of triangle A M_f M_e by taking the cross product of vectors M_f − A and M_e − A. The i-component is zero, and the j-component evaluates to −h. The cross product of vectors M_f − A and M_e − A yields magnitude √(h² + 12). The area of triangle A M_f M_e is therefore (1/2)√(h² + 12). Substituting h² = 16(1 + √3) gives √(28 + 16√3), which simplifies to 4 + 2√3. The area of triangle A M_f M_e is 2 + √3. I am now checking whether triangle A M_e D also lies inside the quadrilateral section. The cross product of vectors Me − A and D − A is (0, −4h, −8√3). The area of triangle A Me D is therefore (1/2)√(16h² + 192). The area of triangle A M_e D is 8 + 4√3. Adding this to the area of triangle A M_f M_e gives the same total of 10 + 5√3, confirming the calculation is consistent. The user now questions whether this quadrilateral is actually the correct section. The plane is confirmed parallel to face VBC and passes through diagonal AD. I am now checking whether a section parallel to another adjacent face, such as VAB, could also satisfy the problem's conditions. I checked whether the plane could be parallel to face VAF or another adjacent face, but the construction confirms it is parallel to face VBC. The section area of 10 + 5√3 is approximately 18.66, which is smaller than the base hexagon area of 24√3 (about 41.57), so the result is geometrically plausible. The height h² = 16(1 + √3) simplifies the area expression to exactly 10 + 5√3. I am now verifying this height value to confirm the calculation. The height calculation is confirmed correct. tan(15°) = 2 − √3, so VM = 4 + 2√3 and h² = 16(1 + √3). The area of the section is therefore 10 + 5√3. I am checking whether the plane could be parallel to face VEF instead of face VBC. I computed the cross product of vectors E−V and F−V for that face, but the i-component evaluates to zero. The plane parallel to face VEF is z = (h / 2√3) y. It intersects the pyramid only in the region where y ≥ 0, so it does not form a valid cross-section. The plane parallel to face VEF intersects edge VB at its midpoint. The same holds for edge VC. This confirms the section is valid. The plane parallel to face VEF intersects edges VB and VC at their midpoints. It also passes through vertices A and D, forming a quadrilateral with those four points. The quadrilateral A Mb Mc D is symmetric to the earlier section with respect to the xz plane. The midpoints Mb and Mc lie on edges VB and VC, and the segments connecting them to A and D also stay inside faces VAB and VCD. The plane parallel to face VEF is geometrically identical to the previous section, so the area remains unchanged. I am now checking whether face VAB could also satisfy the parallelism condition. The dot product of the direction vector AD and the normal to face VAB is √3 h, which is nonzero for any positive height. Therefore no plane containing AD can be parallel to face VAB. The same holds for adjacent faces VFA and VCD by symmetry. The diagonal AD is parallel to the base edges BC and EF. This explains why the section plane can only be parallel to the lateral faces VBC and VEF. The height of the trapezoid is 2√(4 + √3), which does not simplify further. The area expression 10 + 5√3 remains the final answer. A área da seção é 10 + 5√3. O desenvolvimento será apresentado em português, como um candidato faria na prova. A definição de "pirâmide reta" com base regular e faces laterais isósceles é consistente. Vou tentar uma solução geométrica mais sintética para a apresentação, evitando coordenadas excessivas. I am now attempting a purely geometric solution without coordinates. I noted that the regular hexagon has center O and radius 4, and the major diagonal AD equals 8. I am examining whether similarity or symmetry in the hexagon itself can yield the section area directly. I am now using a purely geometric argument. Since the section plane is parallel to face VBC, and face VBC intersects the base along side BC, the intersection lines of these parallel planes with the base must be parallel. Because BC is parallel to AD, this confirms that the section plane passes through diagonal AD while remaining parallel to face VBC. I am now questioning the length of the smaller base of the trapezoid. I want to verify why it equals 2, and whether the area can be computed through a different distance or ratio. The length of the smaller base is exactly 2 because the section plane intersects edges VB and VC at their midpoints. The parameter s = 1/2 was independent of the height h, since the equation for the plane parallel to face VBC reduced to a condition on the edge lengths alone. This confirms that the section always passes through the midpoints of those two edges, regardless of the pyramid's height. I am now deriving the pyramid height h synthetically from the lateral face geometry. The isosceles face has apex angle 30° and base 4, so the median VM from the apex to the midpoint of a base edge equals 2 divided by tan(15°), which simplifies to 4 + 2√3. The apothem of the regular hexagon is 2√3. Using the Pythagorean theorem in triangle VOM, the height h equals 4√(1 + √3), confirming the earlier coordinate result. The section plane through diagonal AD parallel to face VBC is now being analyzed. I am now considering the symmetry plane x = 0 perpendicular to diagonal AD. The intersection of the section plane with this plane should reveal the trapezoid's height. The perpendicular bisector plane of AD contains the height VO and the midpoints of sides BC and EF. The section plane intersects this symmetry plane at these points, which will help determine the trapezoid's height. The plane x = 0 intersects the pyramid in a triangle VNM, with N on BC and M on EF. The segment NM has length 4√3. I am checking whether this triangle lies entirely inside the pyramid. The perpendicular bisector plane of AD intersects the pyramid in an isosceles triangle VNM, with base MN = 4√3. The side VN equals the median VM of face VBC. This cross-section will help determine the trapezoid's height. The area can be written as 5(2 + √3). I am now trying to find the trapezoid height d geometrically without using the pyramid height h. The vector joining the midpoints of PQ and AD is (0, −√3, h/2). It is perpendicular to the parallel sides because its dot product with the direction vector (1, 0, 0) is zero. This confirms that the distance between the two bases equals the length of this connecting vector. <summary goes here> O plano σ tem equação h y + 2√3 z = 0. Ele intersecta as arestas laterais VE e VF nos seus pontos médios P e Q. O plano não intersecta outras arestas laterais interiormente. A seção é o quadrilátero A P Q D. O trapézio tem bases 8 e 2. A altura é a distância entre as retas paralelas AD e PQ. Essa distância é o módulo do vetor (0, −√3, h/2), que é perpendicular às bases. Como h²/4 = 4(1 + √3), a altura d vale √(7 + 4√3) = 2 + √3. A área do trapézio é confirmada como 10 + 5√3. Ainda resta verificar se as faces VBC e VEF são paralelas. As faces VBC e VEF não são paralelas, pois suas normais têm componentes y com sinais opostos. A seção permanece válida porque é paralela a uma delas e intercepta a outra. A área final de 10 + 5√3 será verificada numericamente. A altura da pirâmide é aproximadamente 6,61. A altura do trapézio é cerca de 3,73. A área da seção dá cerca de 18,66. O cálculo vetorial anterior confirma o resultado exato 10 + 5√3. O ângulo de 30° foi escolhido intencionalmente para simplificar a expressão final. A resposta será apresentada como um candidato faria na prova, em português, com cálculos necessários. Ainda busco uma forma geométrica pura para calcular a altura do trapézio sem recorrer a coordenadas. PQ é o segmento que une os pontos médios de VE e VF. Em face VEF, ele é paralelo a EF e mede 2. A altura do trapézio pode ser vista como metade da mediana VM, que vale 4 + 2√3. Isso fornece uma forma geométrica pura para calcular a altura sem coordenadas. A altura do trapézio é metade da mediana VM = 4 + 2√3. Isso confirma a altura d = 2 + √3 sem coordenadas.

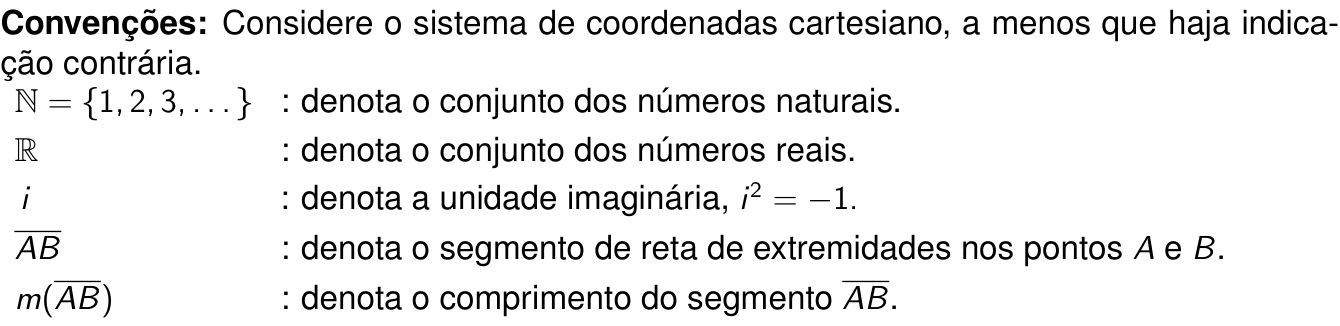

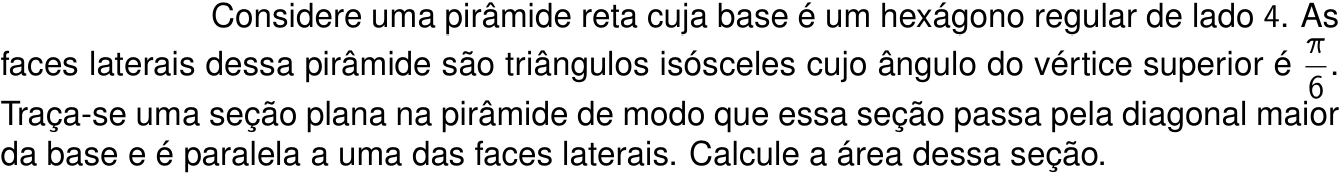

We need answer in Portuguese, solve. Need parse problem. Let's restate. Conventions image irrelevant except segment length etc. Question: "Considere uma pirâmide reta cuja base é um hexágono regular de lado 4. As faces laterais dessa pirâmide são triângulos isósceles cujo ângulo do vértice superior é π/6. Traça-se uma seção plana na pirâmide de modo que essa seção passa pela diagonal maior da base e é paralela a uma das faces laterais. Calcule a área dessa seção." Need solve. Need be careful: right pyramid (reta) with regular hexagon base side 4. Lateral faces are isosceles triangles whose apex angle (at top vertex of pyramid) is π/6 = 30°. A plane section passes through the "diagonal maior" of base (main diagonal? In regular hexagon, "diagonal maior" likely longest diagonal, connecting opposite vertices, length 8? Actually regular hexagon side 4: distances: adjacent 4, skip one 4√3? Let's recall hexagon vertices on circle radius 4. Diagonal connecting opposite vertices = diameter = 8 (major/longest). Diagonal connecting vertices with one vertex between = 4√3? Let's classify: regular hexagon has 9 diagonals: 6 shorter diagonals length? If consecutive vertex skip one: length = side√3 = 4√3? Actually in regular hexagon, diagonal between vertices separated by 2 sides: chord for 120° central angle = 2R sin60 = 2*4*√3/2=4√3. Longer diagonal between opposite vertices central angle 180° = 2R=8. "diagonal maior" definitely length 8 (connecting opposite vertices). It passes through center. Plane section passes through this longest diagonal of base (a line segment connecting opposite vertices) and is parallel to one of lateral faces. Need area of section. We need determine geometry. Let's set coordinates. Regular hexagon base horizontal, side 4. Let base in z=0, center O=(0,0,0). Vertices on circumcircle radius 4. Choose vertices A,B,C,D,E,F around. Let opposite vertices maybe A=(4,0,0)? Wait if side 4, circumradius=4. Let's set regular hexagon vertices: A=(4,0,0) B=(2,2√3,0) C=(-2,2√3,0) D=(-4,0,0) E=(-2,-2√3,0) F=(2,-2√3,0) Then opposite pairs: A-D diagonal length 8, B-E length 8, C-F length 8. "diagonal maior" could be any. Let's choose AD perhaps. Plane passes through AD (x-axis segment from -4 to 4 at y=0,z=0) and is parallel to one of lateral faces. Need identify which lateral face? "paralela a uma das faces laterais" any one? Maybe due to symmetry maybe same area? Need compute. Pyramid is right (reta): apex S directly above center O=(0,0,h). Lateral faces congruent? Since base regular and apex above center, all lateral faces congruent. Apex angle of each lateral face (isosceles triangle with base a side of hexagon length 4) at S is π/6. So for each side AB etc, triangle SAB has SA=SB=lateral edge length L, base AB=4, angle ASB = π/6. By law of cos: AB^2 = L^2 + L^2 - 2L^2 cos(π/6)=2L^2(1 - √3/2). So 16 = 2L^2(1 - √3/2) => L^2 = 8 / (1 - √3/2) = 8 * (2)/(2-√3)? Actually 1 - √3/2 = (2-√3)/2. L^2 = 8 *2/(2-√3)=16/(2-√3)=16(2+√3) because rationalize: 1/(2-√3)=2+√3. L^2=32+16√3. Then height h squared = L^2 - R^2 (R=4? Wait lateral edge from apex to base vertex is length L, distance from center to vertex R=4, apex directly above center, so h^2 + 4^2 = L^2 => h^2 = L^2 -16 = (32+16√3)-16 = 16+16√3=16(1+√3). So h = 4√(1+√3). Angle apex 30° consistent. Now choose a lateral face. Let's label base vertices A-F as above. Consider lateral face SAB (side AB). Plane section through diagonal AD (opposite vertices A and D) and parallel to face SAB? Or "uma das faces laterais" maybe any, likely face not containing diagonal? It says "paralela a uma das faces laterais": one of lateral faces. Since diagonal AD lies in base; a plane through AD can be parallel to a lateral face that does not intersect? Need understand. A plane through AD and parallel to a lateral face. Since AD is in base plane, the plane intersects base in line AD. It must be parallel to a lateral face, which contains a side of base. If plane parallel to face SAB, then its intersection with base plane is parallel to AB? Wait if a plane P is parallel to a plane Q (face SAB), then their intersections with base plane z=0 are parallel lines (unless P contains base? No P through AD lies in base plane? Actually P passes through AD which lies in base plane; P intersects base plane along line AD. If P parallel to face SAB, then line AD (intersection P∩base) must be parallel to line AB (intersection face SAB∩base), unless face SAB intersects base in AB. Since AD and AB are not parallel (meet at A), impossible. Ah! Wait if plane P contains AD in base plane, and is parallel to face SAB, then P and face SAB don't intersect. But face SAB contains AB in base plane. The line AD is in P and base plane; line AB in face and base plane. If P parallel to face plane, then any line in P parallel to any line in face? Actually parallel planes have parallel intersections with any third plane. So P∩base and face∩base must be parallel. But P∩base = AD, face∩base = AB, not parallel. Thus no such plane through AD parallel to face SAB if face contains base edge AB? Wait maybe "diagonal maior da base" could be not AD? There are three long diagonals: AD, BE, CF. They intersect at center. A plane through one such diagonal might be parallel to a lateral face that contains a base side not intersecting? Let's examine. A plane through entire diagonal line AD? It contains segment AD; a plane through a line in base. To be parallel to a lateral face (which contains one side of hexagon in base), the intersection line with base must be parallel to that side. Since the section plane intersects base in the line AD (unless plane equals base no). For it to be parallel to a lateral face whose base edge is one of hexagon sides, need AD line parallel to that side. But AD line (through opposite vertices) direction? In regular hexagon, opposite vertices line angle? AD is a diameter through A and D; direction horizontal. Which side(s) are parallel to AD? Sides? Let's see hexagon sides: AB direction from A(4,0) to B(2,2√3) vector (-2,2√3) angle 120°; BC vector (-4,0) horizontal parallel AD! Yes side BC is horizontal, parallel to AD? Wait AD is line y=0 from x=-4 to4. BC from B(2,2√3) to C(-2,2√3) direction (-4,0), horizontal, parallel. So face SBC contains side BC, which is parallel to AD. So plane through AD can be parallel to lateral face SBC? Face SBC contains S, B, C. Its intersection with base is BC, which is parallel to AD. So possible. Also side EF? EF from E(-2,-2√3) to F(2,-2√3) horizontal parallel AD too. Face SEF also. So there are two opposite lateral faces with base edges parallel to AD: face SBC and face SEF? Wait AD horizontal y=0; BC horizontal y=2√3; EF horizontal y=-2√3. Both parallel. The plane through AD could be parallel to face SBC or SEF. Are areas same? likely symmetry? Maybe "uma das faces laterais" maybe either, due to symmetry same area. But need check. Also note there are two choices: the plane passes through "a diagonal maior da base" perhaps the longest diagonal; and is parallel to "uma das faces laterais". Could be plane through the diagonal and parallel to one of lateral faces -> unique? Need determine which faces are parallel to diagonal. There are 6 lateral faces. A line AD (long diagonal) is parallel to two opposite sides BC and EF. So two possible lateral faces: SBC and SEF. Maybe by symmetry, areas maybe equal? Need compute. Wait maybe "diagonal maior" might mean the "main diagonal" of base but there are 3; maybe plane through "a diagonal maior" maybe one chosen, and parallel to a lateral face containing an adjacent side? Let's parse: "Traça-se uma seção plana na pirâmide de modo que essa seção passa pela diagonal maior da base e é paralela a uma das faces laterais." It doesn't specify which diagonal or which face, but likely any such section area same? Need verify. Let's model coordinate and compute section area for plane through AD parallel to face SBC (or SEF). Need be precise: Plane contains line AD (base) and is parallel to face SBC. Since face SBC contains line BC parallel AD, plane through AD parallel to face SBC is essentially the plane containing AD and a line parallel to face's direction? Actually any plane through AD parallel to face SBC: Face plane SBC has normal n_face. A plane P through AD parallel to face SBC has same normal n_face (or opposite) because parallel planes share normal? Wait parallel planes have parallel normals; if P parallel to face SBC, its normal is parallel to face's normal. Since P contains AD, its equation determined: n_face · (X - A)=0 for X in P, with n_face ≠0. But face SBC plane does not contain A generally. P through A with same normal is parallel to face SBC. Yes unique plane through AD? Wait P must contain entire line AD. The equation n_face · (X - A)=0 defines a plane through A, parallel to face SBC; does it contain D? Need check n_face · (D-A)=0? Since D = -A (if A=(4,0,0), D=(-4,0,0)), D-A=(-8,0,0). Need normal horizontal component zero? For face SBC, normal maybe has x-component? Let's compute. If n_face has x=0, then yes. But face SBC is vertical? Let's compute normal. Coordinates: S=(0,0,h), B=(2,2√3,0), C=(-2,2√3,0). Vectors SB=(2,2√3,-h), SC=(-2,2√3,-h). Cross product n = SB × SC. Compute: SB=(2, 2√3, -h) SC=(-2, 2√3, -h) Cross: i: (2√3)(-h) - (-h)(2√3)= -2√3 h + 2√3 h =0 j: - [ (2)(-h) - (-2)(-h) ] = - [ -2h - 2h ] = 4h? Let's do formula: u×v = (u2 v3 - u3 v2, u3 v1 - u1 v3, u1 v2 - u2 v1) u2 v3 - u3 v2 = (2√3)(-h) - (-h)(2√3)=0. u3 v1 - u1 v3 = (-h)(-2) - (2)(-h)=2h +2h=4h. u1 v2 - u2 v1 = (2)(2√3) - (2√3)(-2)=4√3 +4√3=8√3. So n=(0,4h,8√3). x-component 0, so plane through A with normal (0,4h,8√3): 0*(x-4)+4h*(y-0)+8√3*(z-0)=0 => 4h y + 8√3 z=0 => h y + 2√3 z=0 => y = -(2√3/h) z. Contains A: y=0,z=0 yes; D y=0,z=0 yes. Good. Plane P: y + (2√3/h) z = 0? Actually h y + 2√3 z =0 => y = -(2√3/h) z. So section plane tilts. Similarly plane through AD parallel to face SEF maybe y = +(2√3/h) z? Wait face SEF has B? Coordinates E=(-2,-2√3,0), F=(2,-2√3,0). Normal cross SE,SF? SE=(-2,-2√3,-h), SF=(2,-2√3,-h). Cross maybe (0,-4h,8√3) or something. Plane y = +(2√3/h) z. Mirror across base. Areas likely equal. Now need area of cross-section of pyramid by plane P: polygon intersection of plane P with pyramid (convex polyhedron). Since section passes through AD (base diagonal) and cuts pyramid. Need compute area of resulting polygon. Because pyramid is convex; plane P intersects base plane along AD, and extends upward/downward? Since h>0. Need determine which side of base the plane cuts. Equation y = -(2√3/h) z. For z=0, y=0 line AD. For z>0 (interior of pyramid above base), y negative if? If z positive, y = -(2√3/h)z <0. The pyramid interior near base has y between? Hexagon vertices: some y positive (B,C=+2√3), some negative (E,F=-2√3), A,D y=0. Plane has y negative for z>0. It may cut lateral faces? Need find intersection polygon. Approach: Since plane contains base diagonal AD and is parallel to lateral face SBC (which is above side BC with y=+2√3, z from 0 to h). Plane P tilts downward on side of BC? Actually face SBC lies on positive y side; P through AD and parallel to SBC: because face SBC has y positive for z>0? Wait face SBC points: S(0,0,h), B,C y=+2√3,z=0. It is a triangle above positive y. Plane P through AD parallel to it will be on opposite side? For z>0, P has y negative (equation y = -(2√3/h) z). So P cuts through lower half of pyramid maybe near E,F? But P contains AD (diameter from A(4,0,0) to D(-4,0,0)). The pyramid extends both y positive and negative. P will intersect lateral faces not just base. Need find intersection polygon. Alternative use symmetry: Plane P through AD, parallel to face SBC. It likely intersects pyramid in a quadrilateral or triangle? Let's visualize. Pyramid base hexagon. Lateral faces: SAB, SBC, SCD, SDE, SEF, SFA (if vertices A-B-C-D-E-F). Diagonal AD separates base into two quadrilaterals? Actually AD is a diagonal; it splits hexagon into two congruent trapezoids? From A to D opposite vertices, one side has B,C (three edges? A-B-C-D) and other side D-E-F-A (three edges? D-E-F-A). So base is split into two congruent quadrilaterals? Actually A-B-C-D has vertices A,B,C,D, sides AB,BC,CD,DA. It's a trapezoid? The other D-E-F-A is congruent. The plane contains AD and will intersect some lateral faces above. Because plane through AD parallel to SBC (face above side BC). The face SBC is above one side of diagonal AD (the side containing BC). The plane likely intersects the opposite side? Need determine. Let's set coordinates numeric maybe. h = 4√(1+√3). Compute approximate h? √3=1.732, 1+√3=2.732, sqrt=1.653, h≈6.612. Then slope 2√3/h = 3.464/6.612 =0.524. So y = -0.524 z. Plane intersects base along AD y=0. For z>0, y negative, so plane lies below the x-axis. The pyramid base has two vertices below y=0: E,F (y=-2√3≈-3.464), and two above B,C (+3.464), two on axis A,D. So plane cuts the "lower" half of pyramid containing E,F? It contains AD and goes downward, so likely section includes base segment AD plus edges from A,D to some points on lateral faces SE? Wait plane passes through AD and is parallel to SBC (above BC). It may intersect the lateral faces that meet at edge? Let's list lateral faces and their side of diagonal AD. Diagonal AD divides base vertices into two groups: Side 1 (positive y): B,C -> faces SAB, SBC, SCD lie above side ABCD? Actually face SBC is above side BC (positive y). Face SAB shares AB; A(4,0) to B(2,3.464) lies positive? Points y positive except A. Face SCD similarly. Face SDE shares D and E (negative y), SEF negative, SFA (F negative to A). So the plane through AD parallel to SBC may intersect the pyramid on the negative-y side (below AD), because for z>0, plane has y<0; it will cut faces SDE, SEF, SFA maybe, and maybe base AD. It might also intersect SAB and SCD near A,D? Need. Since plane contains line AD, which is an edge? AD is not an edge of pyramid (diagonal not edge except in base polygon? Actually AD is a diagonal of base, not an edge; it lies in base plane inside base). Plane P intersects base in segment AD (diagonal line). The section polygon will have side AD? Wait intersection of plane with base plane is entire line AD; inside base polygon, intersection is segment AD. Since AD is inside base (diagonal), not boundary? The base is hexagon; segment AD lies inside the hexagon, connecting opposite vertices, yes entirely inside (except endpoints). So section polygon includes base segment AD? However AD is not on boundary of pyramid? It is inside base, but plane cuts through interior; the section polygon boundary is intersection of P with lateral faces plus possibly base? Actually cross-section of a convex polyhedron by a plane: polygon whose edges are intersections of P with faces of polyhedron (faces includes base). Since P intersects base plane in line AD; the portion of AD inside base is part of section boundary? It separates base interior? Wait if plane passes through interior of base along AD, then the section polygon includes segment AD as one edge? Let's think: A plane slicing a pyramid through a base diagonal and upward: If the plane cuts only lateral faces above, its intersection with base plane is line AD; the segment AD is part of the section boundary because on one side of AD lies base interior (inside pyramid) and on other side? Actually the plane divides the pyramid into two parts; the intersection includes the line segment AD which lies in the base (a face of polyhedron). The base face intersection is AD. Since AD is a chord of the base polygon but not an edge? Wait polygon face is the whole hexagon; intersection of a plane with a face is a line segment (possibly) lying entirely in the face. If the covering plane intersects a face through its interior, the intersection segment is part of the section polygon boundary. It can be a diagonal of the face. So yes segment AD is an edge of cross-section. But since AD is inside base, not on original boundary; okay. However, the section might also intersect the base at other points? Since P contains AD line; intersection with base plane is the entire line, but within base polygon only segment AD because line AD crosses hexagon at A,D only? Let's verify: line y=0 through hexagon. Hexagon vertices: A(4,0),D(-4,0) endpoints; interior along x-axis from -4 to4. So intersection with base polygon is segment AD. So section polygon has an edge AD on base plane, but this edge is not on boundary of pyramid except endpoints? Actually endpoints A,D are vertices of pyramid; segment AD is inside base but its endpoints are vertices. The section will include AD and additional segments from A and D to points on lateral faces? Wait a plane section polygon boundary should consist of intersections with faces. It includes AD (intersection with base face). Since AD is a diagonal, the base face intersection is a segment connecting two nonadjacent vertices; yes. Now additional edges of section will be intersections with lateral faces that it cuts. Since plane contains A and D (vertices), it passes through vertices of pyramid. At vertex A, several faces meet: base hexagon, and lateral faces SAB, SFA? At vertex D, faces SCD, SDE? The plane might pass through A and D but not along adjacent lateral face edges? It contains S? No, generally plane not through S. It contains base diagonal AD; it intersects lateral faces adjacent to A? Let's see. Plane P equation y = -k z, k=2√3/h >0. At A=(4,0,0): satisfies. At D=(-4,0,0): satisfies. At S=(0,0,h): y=0, z=h -> y=-kh <0? Wait P: y = -k z, so at S, y=0 but RHS -k h ≠0, so S not in P. So plane not through apex. Intersection with lateral face SAB: face plane through S,A,B. Need compute if P intersects triangle SAB. Since A common; D? no. It might intersect along segment from A to some point on edge SB? Because P contains A and intersects face SAB in a line through A (since A lies in both planes). The line is P∩faceSAB. It will be a segment from A to a point on edge SB or SA? Need find. Similarly at D: P intersects face SDE? Wait at D, adjacent lateral faces SCD and SDE. Plane contains D; probably intersects one of these. Also P may intersect faces SBC? Face SBC is parallel to P (same normal) and lies on positive y side; P parallel to it, no intersection (unless same plane? no). Face SEF? P maybe parallel to SEF? Wait P parallel to SBC; SEF is mirror with normal? Not necessarily parallel. P may intersect SEF? Since SEF is? Face SEF normal maybe (0,-4h,8√3) or (0,4h? Let's compute). Plane P normal n_P=(0,4h,8√3) (from face SBC). Face SEF normal maybe not parallel? Let's compute: SE=(-2,-2√3,-h), SF=(2,-2√3,-h). Cross: i: (-2√3)(-h) - (-h)(-2√3)=0; j: -[(-2)(-h) - (2)(-h)] = -[2h +2h] = -4h; k: (-2)(-2√3) - (-2√3)(2)=4√3+4√3=8√3. n=(0,-4h,8√3). Not parallel to n_P=(0,4h,8√3) (different sign y). So P not parallel to SEF; it intersects maybe. Given P has y negative for z>0, it likely intersects faces SDE, SEF, SFA (lower half) and maybe SAB, SCD near A,D. It contains AD; so likely polygon A - (point on?)- ... - D? Let's determine. Because P contains AD, the boundary of section will include AD plus paths from A to D via intersections with lateral faces on the side of P? Since section polygon is convex and lies in plane P. It should have vertices: A, D, and some intersection points on edges of pyramid that lie in P. It may be a quadrilateral A-X-Y-D or triangle? Let's find intersection points of P with lateral edges of pyramid. Pyramid edges: base edges (AB,BC,CD,DE,EF,FA) and lateral edges from S to each base vertex (SA,SB,SC,SD,SE,SF). But base edges lie in base plane; P intersects base edges only at A,D? Since P∩base plane = AD, and base edge intersections: AB shares A, so intersection with AB is A (since B not on AD? B y=2√3 not 0; so only A). BC parallel AD? line y=2√3, z=0; P∩base y=0, so no intersection. CD shares D? C y positive, D (x=-4,y=0); edge CD ends at D so intersection D. DE from D to E (y negative): edge DE lies in base; P∩base = AD; line DE intersects y=0 at D only? Let's check line DE from D(-4,0) to E(-2,-2√3). Param y = -2√3 t; y=0 at t=0 => D. So only D. EF horizontal y=-2√3, z=0 no. FA from F(2,-2√3) to A(4,0); P∩base y=0 intersects at A? Param from F to A: y=-2√3(1-t)? Actually y = -2√3(1-t)? At t=0 y=-3.464, t=1 y=0 => A. So only A. Thus base edges only A,D. Now lateral edges: SA, SB, SC, SD, SE, SF. P contains A and D, so intersects SA at A (since A on P), SD at D (D on P). It may intersect other lateral edges SB,SC,SE,SF? Since P is not through S/B/C/E/F, it may cross some edges where P cuts lateral faces. Need solve intersection with edges. Edge SB: from S(0,0,h) to B(2,2√3,0). Param X = S + t(B-S) = (2t, 2√3 t, h(1-t)), t∈[0,1]. P: y = -k z = -(2√3/h) z? Wait k=2√3/h, so equation y + (2√3/h) z =0? Let's use h y + 2√3 z =0. Plug: h*(2√3 t) + 2√3 * h(1-t) = 2√3 h [t + (1-t)] = 2√3 h ≠0. So no intersection (constant positive). Thus edge SB doesn't meet P. Edge SC: S to C=(-2,2√3,0): X=(-2t, 2√3 t, h(1-t)). Plug h y + 2√3 z = h*2√3 t + 2√3*h(1-t)=2√3 h >0. No. Edge SE: S to E=(-2,-2√3,0): X=(-2t, -2√3 t, h(1-t)). Plug: h*(-2√3 t)+2√3*h(1-t)=2√3 h (-t +1 - t?) actually -2t + (1-t)? Let's compute: h y = -2√3 h t. 2√3 z = 2√3 h(1-t). Sum = 2√3 h (1 - t - t?) = 2√3 h (1 - 2t). Set 0 => t=1/2. So P intersects edge SE at t=0.5: point E_mid = S + 0.5(E-S)=(-1, -√3, h/2). So on edge SE. Edge SF: S to F=(2,-2√3,0): X=(2t, -2√3 t, h(1-t)). Plug h*(-2√3 t)+2√3*h(1-t)=2√3 h(1 - 2t)=0 => t=1/2. Point F_mid=(1, -√3, h/2). So P intersects both SE and SF at midpoints? Wait t=1/2 from S to E/F, yes. Edge maybe SA? At A, t=1? SA from S to A=(4,0,0): X=(4t,0,h(1-t)). Plug h*0 +2√3*h(1-t)=0 => t=1 => A. So yes A. SD from S to D=(-4,0,0): X=(-4t,0,h(1-t)); same t=1 => D. So P intersects lateral edges at A, D, midpoints of SE and SF. Also does it intersect edges? What about edge S? No. So section polygon vertices likely A, D, and midpoints M_E=( -1,-√3, h/2), M_F=(1,-√3, h/2) maybe connected by intersection with faces? But order? Need determine polygon shape. Plane P contains A (right end), D (left end), M_E, M_F? Let's see coordinates in plane. M_E=(-1,-√3,h/2). Check P: h y +2√3 z = h*(-√3)+2√3*(h/2)= -√3 h + √3 h=0. Good. M_F=(1,-√3,h/2): h*(-√3)+2√3*(h/2)=0. So both in P. Now section polygon: Since plane cuts through vertices A,D and midpoints M_E, M_F. The intersection with pyramid likely polygon A-M_F-M_E-D? But A and D are endpoints of base diagonal; M_F and M_E are on lateral edges from S to F/E. But which face intersections connect them? Need see faces: - Face SEF contains both M_E (mid SE) and M_F (mid SF) and base edge EF. P intersects face SEF: since both M_E,M_F lie in P and S? S not. The intersection line in face SEF is M_E M_F (both on edges SE,SF) maybe. So P∩face SEF = segment M_E M_F. This segment is interior of face SEF? SEF triangle; segment connecting midpoints of SE and SF is parallel to EF, length half EF =2 (since EF=4). It lies inside face SEF. So section boundary includes M_E-M_F. - Face SDE contains D and E and S; P intersects at D and M_E? Both lie in P; intersection line is D-M_E? Since D and M_E in face SDE? D is vertex, M_E on edge SE, yes both in face SDE. The intersection line should be segment D-M_E if it lies within triangle. Does segment D-M_E lie inside face SDE? D and M_E are on edges, yes segment inside triangle connecting vertex D to midpoint of opposite edge? Actually triangle SDE vertices S,D,E. M_E on SE, D vertex. Segment D-M_E lies inside triangle (except endpoints). So P∩faceSDE = D-M_E. - Similarly face SFA? Contains A,F,S; P intersects at A and M_F? Since M_F on SF, A vertex; line A-M_F inside face SFA. - Face SAB? Contains A,B,S; P contains A but not B, maybe intersection line A-? The plane P might also intersect face SAB along another line through A, perhaps not containing M_F? Wait M_F is on SF, not in face SAB. Face SAB includes A,B,S; P contains A. What other point on edges of face SAB? Edges: SA (A), SB (no), AB (A only). So P intersects face SAB only at A? But a plane intersecting a face can be a segment; if only one point, maybe tangent? But section polygon should have an edge from A to next vertex along face SAB? Wait if P intersects face SAB only at A, then A is a vertex of section polygon but not necessarily connected to M_F? Let's examine topology. The section polygon boundary consists of intersection segments with each face that the plane cuts. If face SAB intersection is just point A, then that face contributes a vertex (no edge). But a polygon vertex can be where multiple face intersections meet. At A, faces base, SAB, SFA meet. P contains A, so A is a vertex of section. It may connect to an intersection point on face SFA (M_F) and perhaps to an intersection on face SAB? Since P∩faceSAB is just A? Wait if plane intersects face SAB only at A, then no edge emanating from A along SAB. But the section polygon boundary may leave A via the intersection with face SFA to M_F, and via base AD to D. So A-M_F is an edge? Yes on face SFA. A-D is on base. At A, two edges? A polygon vertex normally has two incident edges. So A connected to D (base edge) and M_F (face SFA). Good. Similarly D connected to M_E (face SDE) and A (base edge). M_F connected to A (face SFA) and M_E (face SEF). M_E connected to M_F (face SEF) and D (face SDE). That yields polygon A-M_F-M_E-D? Wait order: A -> M_F -> M_E -> D -> A? Since D connected to A via base AD. Yes quadrilateral A-M_F-M_E-D (area). But is there any intersection with face SCD? Face SCD contains D,C,S; P contains D maybe? Could intersect along D to another point? Check edge SC no intersection; edge SD D; edge CD D. So only D. Face SBC parallel no. So no. Thus section is quadrilateral A-M_F-M_E-D? But wait A and D are opposite base vertices; M_F on SF, M_E on SE. Since M_F-M_E segment connects midpoints of SF and SE, parallel to EF? EF is lower base edge. The quadrilateral A-M_F-M_E-D maybe is a trapezoid? Let's see vertices coordinates. Need verify order: A (4,0,0) -> M_F=(1,-√3,h/2) -> M_E=(-1,-√3,h/2) -> D=(-4,0,0). Are they coplanar? Yes. Is the polygon simple? Let's compute vectors: F? Segment M_F to M_E horizontal (x direction length 2). Segment D to A horizontal along x-axis at y=0,z=0. Segment A to M_F and D to M_E are symmetric. So quadrilateral with bases AD (length 8) and M_E M_F (length 2), and slant sides A-M_F (length?) and D-M_E (length same?). It might be an isosceles trapezoid? Let's compute side lengths: A-M_F: vector (1-4, -√3-0, h/2-0)=(-3, -√3, h/2). Length^2 =9+3+h^2/4 =12 + (16(1+√3))/4 =12+4(1+√3)=16+4√3? Wait h^2=16(1+√3); h^2/4=4(1+√3)=4+4√3. So length^2=9+3+4+4√3=16+4√3. D-M_E vector (-1+4? M_E - D = (-1 - (-4), -√3 -0, h/2)= (3, -√3, h/2); same length^2=9+3+h^2/4=16+4√3. So trapezoid with bases 8 and 2, isosceles? The nonparallel sides equal. Height (distance between bases) in plane? Since bases are parallel horizontal; distance between lines AD and M_E M_F in space. M_E M_F has y=-√3,z=h/2. AD y=0,z=0. The perpendicular distance in plane? Need compute area. But wait: Are there perhaps additional intersection points on edges SA? We considered only lateral edges; plane also might intersect lateral face SAB along segment A to a point on edge SB? We found no on SB; but what about intersection with face SAB along line through A parallel? Let's solve plane P ∩ face plane SAB. Since both contain A, their intersection is a line through A. Does it intersect segment SB? We computed edge SB no. It might intersect edge? Only at A? But line through A in face SAB could cross interior of face then exit through edge SA? But SA contains A; edge AB? It may cross at A only; if line not along edge, it might enter face at A and exit through AB? But AB is base edge; P∩base=AD, so intersection with AB is A only, so no other exit. It could exit through edge SB if line intersects extension? We saw edge SB no. So the entire intersection with face SAB is just A? But a plane passing through a vertex of a triangular face, not along an edge, typically intersects the face in just that vertex if it doesn't cross interior? Wait consider face SAB triangle. Plane through vertex A. If plane is not parallel to face and not containing face, it intersects the triangle in a segment from A to a point on opposite edge SB if the line through A in the plane lies inside the wedge of face. Our line P∩faceSAB might be outside the triangle except at A? Need check. We solved intersection with edge SB: none, but maybe it crosses edge AB at A (already) and edge SA at A. So maybe the line is outside the triangle? But at A, the line could enter the face if its direction lies inside angle ASB? Need check. It might intersect edge SB in extension beyond segment? Let's compute line direction. Face SAB plane normal maybe. Get intersection line: P normal n_P=(0,4h,8√3), face SAB normal n_f = SA × SB? Let's compute. SA=A-S=(4,0,-h), SB=(2,2√3,-h). Cross n_f = SA × SB: i: 0*(-h) - (-h)(2√3)=2√3 h j: -[4*(-h) - (2)(-h)] = -[-4h+2h] = 2h? Actually formula: u3 v1 - u1 v3 = (-h)(2) - (4)(-h)= -2h +4h=2h. Then j component is negative of that = -2h? Wait cross product components: (u2 v3 - u3 v2, u3 v1 - u1 v3, u1 v2 - u2 v1). u3 v1 - u1 v3 = (-h)(2) - (4)(-h)= -2h+4h=2h. So j= -2h? No, component 2 = (u3 v1 - u1 v3) = 2h. Wait I confused: cross = ( (u2 v3 - u3 v2), (u3 v1 - u1 v3), (u1 v2 - u2 v1) ). So second component = u3 v1 - u1 v3 = 2h. Yes. Third = u1 v2 - u2 v1 = 4*(2√3) - 0*2 =8√3. So n_f=(2√3 h, 2h, 8√3). Intersection line direction d = n_P × n_f: n_P=(0,4h,8√3) n_f=(2√3 h, 2h, 8√3) d = n_P × n_f: i: 4h*(8√3) - 8√3*(2h) = 32√3 h -16√3 h =16√3 h j: -(0*8√3 - 8√3*(2√3 h)) = - (0 - 16*3 h?) Wait 8√3*2√3 h=16*3 h=48h; so - ( -48h)=48h? Actually formula j = u3 v1 - u1 v3 = 8√3*(2√3 h) - 0*8√3 = 48 h. But with cross: (u2 v3 - u3 v2, u3 v1 - u1 v3, u1 v2 - u2 v1). Let's do carefully: u=(0,4h,8√3), v=(2√3 h,2h,8√3) component1 = u2 v3 - u3 v2 = 4h*8√3 - 8√3*2h =32√3h -16√3h=16√3h. component2 = u3 v1 - u1 v3 = 8√3*(2√3 h) - 0*8√3 = 8√3*2√3 h=16*3 h=48h. component3 = u1 v2 - u2 v1 = 0*2h - 4h*(2√3 h)= -8√3 h^2. So d=(16√3 h, 48h, -8√3 h^2). Simplify divide 8h: (2√3, 6, -√3 h). Check. So line through A direction d. Does it intersect edge SB? Param A + t d = (4 + t*2√3, 0+6t, 0 - t√3 h). For it to be on edge SB: x=2s? y=2√3 s? z=h(1-s)? Solve: 4 + 2√3 t = 2s 6t = 2√3 s -> s = (6t)/(2√3)= (3t)/√3 = √3 t. z: -√3 h t = h(1 - s) = h(1 - √3 t) => -√3 t = 1 - √3 t => 0=1 impossible. So no intersection with edge (line parallel in some sense). So face intersection just A. But wait if line intersects edge SB extension? t? From equations s=√3 t, s from edge? z gave contradiction independent. So no. Similarly at D. Thus section polygon is quadrilateral A-M_F-M_E-D. Need confirm M_E and M_F order and that there's no other intersection with edge? What about edge? P might intersect lateral face SAB along segment from A to point on edge AB? AB edge only A because P∩base=AD. So no. So yes. But let's double-check plane P also intersects lateral face SBC? It is parallel, no. Face SEF intersection M_E-M_F; face SDE D-M_E; face SFA A-M_F; base AD. So polygon A-M_F-M_E-D (or A-D-M_E-M_F? Need correct cyclic order). Let's determine vertex order using coordinates in plane. Plane P viewed in coordinates maybe. Let's project to 2D. Since P contains x-axis? Actually plane equation y + (2√3/h) z=0. It is spanned by x-axis direction (1,0,0) and vector in yz-plane perpendicular? Plane normal n=(0,4h,8√3) = (0, h? etc). A point in P can be parameterized by x and one parameter. Let's define coordinates in plane: e1=(1,0,0) (along AD), e2 = (0, ?, ?) perpendicular to e1 and in P. Since n·e2=0, choose e2=(0,1, -h/(2√3))? Because n_y*1 + n_z*z =0 => 4h*1 +8√3*z=0 => z = -4h/(8√3)= -h/(2√3). So e2=(0,1, -h/(2√3)) is in P. Then any point in P = x e1 + s e2? But e2 not orthogonal to e1 (yes e1·e2=0), but length normalize? Use coordinates (x,s) where point=(x, s, -s h/(2√3)). Let's verify y=s, z= -s h/(2√3). Equation: y + (2√3/h) z = s + (2√3/h)(-s h/(2√3))=s - s=0. Good. So plane coordinates: X = (x, s, -s h/(2√3)). Let s maybe vertical in plane, x horizontal. Now express points: A=(4,0,0) => x=4, s=0. D=(-4,0,0) => x=-4, s=0. M_F=(1,-√3,h/2). Its z=h/2 = -s h/(2√3) => s = -(2√3/h)*(h/2)= -√3. y=s = -√3 yes. x=1. So M_F => (x=1, s=-√3). M_E=(-1,-√3,h/2) => s=-√3, x=-1. Thus in plane coordinates (x,s), quadrilateral vertices: A(4,0), M_F(1,-√3), M_E(-1,-√3), D(-4,0). Is that order? Let's plot: A right, M_F below, M_E below left, D left, back to A. Yes polygon A-M_F-M_E-D is trapezoid with bases AD along s=0 from x=-4 to4 length 8, and M_F-M_E along s=-√3 from x=-1 to1 length 2, parallel horizontal. The distance between bases in s-coordinate is √3? Wait s difference = |-√3 -0|=√3. But is our e2 basis vector unit? e2=(0,1,-h/(2√3)). Its length = sqrt(1 + h^2/(12)) = sqrt(1 + [16(1+√3)]/12) = sqrt(1 + (4/3)(1+√3)) = sqrt(1 + 4/3 + 4√3/3) = sqrt(7/3 + 4√3/3) = sqrt((7+4√3)/3). Not unit. So coordinate s difference √3 corresponds actual distance = √3 * |e2| = √3 * sqrt((7+4√3)/3) = sqrt(3)*sqrt((7+4√3)/3)= sqrt(7+4√3). But area of trapezoid in plane = (base1+base2)/2 * height_actual = (8+2)/2 * sqrt(7+4√3)=5 sqrt(7+4√3). Is that the area? Let's verify by vector area. But wait height between bases in plane may not equal Euclidean distance between lines? In plane coordinates using non-orthonormal basis, area scale factor = |e1 × e2|? Since e1=(1,0,0), e2=(0,1,-h/(2√3)). Cross product e1×e2 = (0, -? , ?). e1×e2 = (0,? Let's compute: e1=(1,0,0), e2=(0,1,-h/(2√3)). Cross = (0* (-h/(2√3)) -0*1, 0*0 -1*(-h/(2√3)), 1*1 -0*0) = (0, h/(2√3), 1). Length = sqrt(h^2/(12)+1)= same |e2| (since e1 unit perpendicular). So area scale factor = |e1×e2| = |e2| = sqrt(1 + h^2/12). Wait e1×e2 length = sqrt((h/(2√3))^2 +1) = sqrt(h^2/12 +1). That equals |e2| because e1⊥e2. Yes. Area in plane coordinates (x,s) = integral dx ds * scale. The trapezoid area in coordinate units = (8+2)/2 * √3 =5√3. Multiply by scale sqrt(1+h^2/12) = sqrt(1 + [16(1+√3)]/12)=sqrt(1 + (4/3)(1+√3))=sqrt(1 +4/3 +4√3/3)=sqrt(7/3 +4√3/3)=sqrt((7+4√3)/3). Product = 5√3 * sqrt((7+4√3)/3)=5 sqrt( (3)(7+4√3)/3)=5 sqrt(7+4√3). Same as above. Good. But need verify actual polygon area; maybe there's a simpler expression? 7+4√3 =? (2+√3)^2? (2+√3)^2 =4 +4√3+3 =7+4√3. Yes! So sqrt(7+4√3) = 2+√3 (positive). Thus area =5(2+√3)=10+5√3. Nice. Likely answer. But we must be cautious: Is the section plane through "diagonal maior" and parallel to "uma das faces laterais"—maybe there are two possible sections: parallel to a face containing a side parallel to diagonal (BC or EF) giving same area? Let's check if parallel to SEF (other face) plane equation y = +k z? Then section on upper positive side? It might intersect faces SAB, SBC, SCD? Let's compute area maybe same? Let's verify because problem says "uma das faces laterais" singular, maybe due to symmetry same area? Let's check. Plane through AD parallel to face SEF: face SEF has normal (0,-4h,8√3). Plane through A with normal n=(0,-4h,8√3): -4h y +8√3 z=0 => y = (2√3/h) z. For z>0, y positive. It will cut upper half (B,C) and maybe SAB/SCD/SBC? Let's find intersection points with lateral edges. Plane equation y = k z, k=2√3/h. Check lateral edges: SA: y=0, z=h(1-t) => RHS k z = k h(1-t)=2√3(1-t)>0 except t=1? Not zero unless t=1 (A). So A only? Wait if z>0, RHS positive, not zero. So at S t=0 RHS=2√3 not 0; no. So only A? But plane through A and D; at A z=0,y=0. For edge SA except A, y=0, z>0, equation not satisfied. So only A. SB: y=2√3 t, z=h(1-t). Equation 2√3 t = k h(1-t)=2√3(1-t) => t=1-t => t=1/2. So midpoint of SB. SC: y=2√3 t, z=h(1-t): same t=1/2 midpoint of SC. SD: D only. SE: y=-2√3 t, z=h(1-t) -> negative y cannot equal positive RHS except t=0? S? y=0,z=h => 0 ≠ 2√3? no. So no intersection. SF: no. Thus plane intersects SB and SC at midpoints. Section polygon maybe A - M_B - M_C - D? Where M_B midpoint SB, M_C midpoint SC. Faces: SAB intersection A-M_B? Face SAB contains A,B,S; P contains A and M_B on SB, so line A-M_B. Face SBC contains M_B, M_C, and edge BC; P intersects along M_B-M_C. Face SCD contains C,D,S; P contains M_C on SC and D, so line M_C-D. Base AD. Polygon A-M_B-M_C-D (or A-D-M_C-M_B). Area? Compute similarly. Coordinates: M_B = midpoint S(0,0,h) and B(2,2√3,0) = (1, √3, h/2). M_C=(-1, √3, h/2). In plane coordinates? Plane P: y = k z = (2√3/h) z. Parameterize by x and s where point=(x, s, (h/(2√3)) s?) Because y=s, z = (h/(2√3)) s. e2=(0,1,h/(2√3)). A(4,0,0), D(-4,0,0), M_B(1, √3, h/2): s=√3, x=1; M_C(-1,√3,h/2): s=√3, x=-1. Trapezoid bases AD length 8 (s=0), M_B-M_C length 2 (s=√3), height coordinate √3, scale |e2| = sqrt(1 + h^2/12) same. Area =5√3 * scale = same 10+5√3. So yes. Thus area likely 10+5√3. But wait, question: "As faces laterais dessa pirâmide são triângulos isósceles cujo ângulo do vértice superior é π/6." It says lateral faces are isosceles triangles with apex angle π/6. But a right pyramid with regular hexagon base has all lateral faces congruent? Yes because apex over center -> lateral edges equal, base edges equal, so congruent by SSS? Actually all lateral faces congruent. Good. Need determine "diagonal maior da base" maybe length? Regular hexagon side 4. Diagonal maior = 8. Good. Need ensure section plane parallel to "uma das faces laterais" maybe there are exactly? We found two possible sections? But maybe only one lateral face is parallel to a given diagonal? Wait diagonal AD is parallel to two lateral faces' base edges (BC and EF). But face SBC and SEF. However if choose diagonal BE or CF, other faces. The problem doesn't specify which diagonal; but by rotational symmetry, all same. However, need check if plane through AD parallel to lateral face SBC is indeed the one described? The plane "passa pela diagonal maior da base e é paralela a uma das faces laterais." There might be a unique plane for each face? A line and a plane parallel: infinite planes? Actually given a line l and a plane Q not parallel to l? A plane through l parallel to Q exists if l is parallel to Q (i.e., direction of l parallel to plane Q). If yes, unique? Yes because plane through l with normal equal to normal of Q? Actually if l is parallel to Q, there is exactly one plane containing l and parallel to Q? Wait if l is parallel to Q, then l's direction lies in Q. A plane through l parallel to Q: any plane containing l has normal perpendicular to l; to be parallel to Q, its normal must be parallel to Q's normal (so normal n_Q). The plane with normal n_Q containing l is unique if l not perpendicular to n_Q? Since l parallel to Q means n_Q·direction =0, so plane with normal n_Q contains line l? The equation n_Q·(X-A)=0 defines plane; for all points on l, n_Q·(X-A)=constant? Since n_Q·direct=0, constant same; yes contains l. Unique. So yes unique. But wait there are two lateral faces parallel to AD: SBC and SEF. But face SEF is not adjacent to diagonal? The plane through AD parallel to SBC intersects the opposite lower side; the plane through AD parallel to SEF (upper? SEF is lower? Actually EF y=-2√3 lower; face SEF below AD. But earlier plane through AD parallel to SEF gave y=+k z for z>0, so it cuts upper side. Wait if face SEF is below AD, a plane through AD parallel to it: Should it extend into lower side or upper side? Let's re-evaluate: Face SEF contains S, E, F. E,F have y=-2√3; S y=0. The face lies mostly negative y for z>0? Param t: S + u(E-S)+v(F-S). For interior, y = -2√3(u+v), z=h(1-u-v), so y negative proportional to z? Since u+v<1, y = -2√3 (u+v), z=h(1-u-v). So y = -(2√3/h) z exactly? Because y = -2√3 s, z = h(1-s) -> y = -(2√3/h) z? Yes! Wait compute: s=u+v, z=h(1-s) => s=1 - z/h, y=-2√3 s = -2√3(1 - z/h)= -(2√3) + (2√3/h) z. Not exactly y = -(2√3/h)z? That would be y proportional to z through origin? Let's check: Plane SEF equation was? We computed normal n=(0,-4h,8√3) for SE,SF; plane through S? n·(X-S)=0 => -4h(y-0)+8√3(z-h)=0 => -4h y +8√3 z -8√3 h=0 => -4h y +8√3 z =8√3 h => divide 4h: -y + (2√3/h) z = 2√3? Or y = (2√3/h) z - 2√3. Wait earlier I made mistake for plane through A parallel to SEF: I set n=(0,-4h,8√3), equation n·(X-A)=0 => -4h y +8√3 z =0 => y = (2√3/h) z. But face SEF plane itself does not pass through A; it has same normal but translates: y = (2√3/h) z - 2√3? Let's check point E(-2,-2√3,0): RHS (2√3/h)*0 -2√3 = -2√3 yes. Point S: z=h, y= (2√3/h)h -2√3=2√3-2√3=0. Yes. So face SEF plane: y = (2√3/h) z - 2√3. For z between 0 and h, y from -2√3 to 0 (negative). So face SEF lies on negative y side. A plane through AD (y=0,z=0) parallel to face SEF has equation y = (2√3/h) z (same normal, no constant? Since through A: 0 = (2√3/h)*0 + c? Wait parallel plane equation y = (2√3/h) z + c; through A => c=0. So y = (2√3/h) z. For z>0, y positive. So it cuts positive side, not the same side as face SEF? Interesting: A plane through AD parallel to a face on one side of AD can lie on opposite side due to translation? It is parallel to face SEF but not coincident; it is shifted so it passes through AD, which is on the other side of the face? Let's understand: Face SEF is below AD (y negative). The plane through AD parallel to it has same orientation; it is like translating face SEF upward until it passes through AD; since face SEF is below, translating upward? The normal direction: plane SEF: -4h y +8√3 z =8√3 h. Plane through A: -4h y +8√3 z=0. They are parallel, separated. For a given z, face SEF has y = (2√3/h)z -2√3; plane through A has y=(2√3/h)z. So plane through A is 2√3 units above in y. So it is on upper side. It cuts upper half (B,C) indeed. Similarly plane through AD parallel to face SBC (upper) might be negative side? Let's check face SBC plane: y? Face SBC points S(0,0,h), B,C y=+2√3,z=0. Plane through S maybe y = -(2√3/h) z + 2√3? At S z=h -> y=0; B y=2√3,z=0. Equation y = 2√3 - (2√3/h) z. Plane through A parallel: y = -(2√3/h) z (since through A 0=0+c? Wait parallel plane y = -(2√3/h) z + c; through A c=0). So yes negative side. Thus the plane through AD parallel to an upper face cuts lower side, vice versa. So two possible sections: parallel to face SBC (upper) cuts lower half; parallel to face SEF (lower) cuts upper half. Areas same by symmetry (maybe). But if problem just says "uma das faces laterais" no matter which, area same. Good. But let's ensure section polygon in each case is quadrilateral with bases AD and a segment connecting midpoints of two lateral edges? For upper section, yes M_B and M_C midpoints of SB, SC. Area same. However, wait "seção plana na pirâmide de modo que essa seção passa pela diagonal maior da base e é paralela a uma das faces laterais." Could there be a section plane through diagonal AD that is parallel to an adjacent lateral face, e.g., face SAB? As noted, impossible because AD not parallel to AB/SA? Let's test: Face SAB intersection with base along AB; AD not parallel AB, so no plane through AD parallel to face SAB. So only opposite faces whose base edge is parallel to AD. There are two per diagonal. So okay. Need produce final answer with reasoning. But let's also consider an alternative interpretation: The "diagonal maior da base" maybe not necessarily one of three long diagonals? In a regular hexagon, there are diagonals of length 4√3 (short) and 8 (long). "Maior" definitely 8. But could "diagonal maior" mean a diagonal that divides hexagon into two quadrilaterals? Maybe yes. Potential issue: Plane section passes through "diagonal maior da base" maybe the entire diagonal, and parallel to a lateral face. But maybe the section plane cuts the pyramid in a pentagon? Need verify by Euler? Let's compute cross-section with half-space maybe. Our intersection with faces found 4 points; but maybe the plane also intersects face SAB along a segment from A to some point on edge SB? We concluded no because edge SB no intersection; but maybe intersection with face SAB is the segment A to a point on edge AB? No AB only A. So face SAB contributes only vertex A. But is that possible for a cross-section of a convex polyhedron? A plane can pass through a vertex and not enter that face? Yes if the plane is tangent to the face at the vertex? But if it cuts through the interior of the polyhedron elsewhere, at vertex A it may enter face SAB? Let's think: The plane P contains A and extends into the pyramid interior. Near A, the pyramid is bounded by three faces: base, SAB, SFA. The plane P contains line AD in base; from A, one direction along P goes into base along AD (inside base) but also upward? Wait P contains AD along x-axis. At A, the plane extends in direction d (intersection with face SAB) that we computed maybe outside the pyramid? Let's check whether direction from A into plane P and inside pyramid? The interior of pyramid near A is the convex cone generated by vectors along edges to neighbors B,F,S and base interior? The plane P near A intersects the interior if there is a direction in P pointing into the pyramid. Since P passes through the base diagonal AD; at A, the base interior includes directions from A into hexagon along chords to interior points, e.g., toward center O? AD direction from A goes along x-axis toward D, which is inside base (since line y=0). So P indeed contains a direction into base interior (toward D). But the section boundary along base is AD; on one side of line AD in plane P? Wait the plane P cuts the base plane along line AD. The base hexagon lies on both sides of line AD? Actually line AD (x-axis) is a diagonal; the base hexagon is symmetric across it: vertices B,C above y>0; E,F below y<0. So the base interior lies on both sides of AD. However, the plane P for z>0 tilts to one side (say y negative). The portion of base on the other side (positive y) may be outside the pyramid cut? Let's analyze: The plane P divides pyramid. The intersection with base is AD. The section polygon includes AD as an edge; on one side of AD in the base, the plane lies inside? Actually the plane P intersects the base face along AD, splitting it. The section polygon should lie entirely on one side of line AD? Wait a plane slicing a convex polyhedron: the intersection polygon boundary includes AD, but the polygon itself is a 2D region within P. The base face intersection AD is an edge of the polygon; the polygon lies on one side of the line AD within P? Actually the line AD divides plane P into two half-planes. The section polygon must lie entirely on one side of AD? Since the base face intersection segment AD is part of boundary; the rest of polygon extends into the interior on one side of AD (the side where the plane cuts through the pyramid). The other side of AD in P may be outside the pyramid (or extends through base? But base is only one face; beyond AD on other side maybe inside base? Wait the base face is the hexagon. The line AD splits the hexagon into two halves; both halves are part of the base face (a single face). The plane P contains the entire line AD, but on one side of AD, the plane P may go into the base face? Let's think: The plane P intersects the base face in AD. The base face is a polygon; the portion of P∩base is just AD. The base face does not contain any 2D region of P; only the line. So the polygon boundary includes AD, but the polygon interior is not in the base plane. It lies on one side of AD within P depending on whether the plane enters the pyramid above or below relative to base. Since the plane is not the base plane, it immediately leaves the base plane on both sides of AD? Actually any point in P near AD but not on AD has z ≠0 (unless in base plane). For the section polygon to be inside pyramid, z must be ≥0? The pyramid interior is above base z≥0. Thus the section polygon lies on the side of AD where z increases (above base). For P through AD, the direction into z>0 may correspond to one side of line AD (e.g., for our plane y = -k z, for z>0, y<0). So the polygon extends on the negative y side of AD. The other side (y>0) in P would have z<0 (below base), outside pyramid. So indeed edge AD and polygon lies on one side. At vertex A, the polygon edges: along base AD toward D (inside pyramid at z=0 boundary), and along face SFA to M_F (inside face SFA). The direction into face SFA from A: A to M_F vector (-3,-√3,h/2) has y negative, z positive, so above base on negative y side, consistent. The direction along face SAB from A into plane P was outside pyramid? Let's check direction from A along intersection face SAB (d) had components x positive? d=(2√3,6,-√3 h) times t; for small t>0, x increases >4, y positive, z negative, outside. So no. Thus quadrilateral. But wait what about intersection with face SDE? It connects D to M_E on face SDE. M_E=(-1,-√3,h/2); D=(-4,0,0). Segment D-M_E lies on face SDE. At D, polygon edge along base to A and along face to M_E. Good. At M_E, edges to D (face SDE) and M_F (face SEF). At M_F, edges to A (face SFA) and M_E (face SEF). At A, edges to M_F and D. So quadrilateral A-M_F-M_E-D. Now area. Could compute via vector cross product of diagonals? Quadrilateral area = 1/2 | (M_F-A) × (M_E-D)? Actually for quadrilateral vertices in order A, M_F, M_E, D, area = 1/2 | (M_F-A) × (M_E-A)? Wait formula for simple quadrilateral: area = 1/2 | Σ v_i × v_{i+1} |. We can compute vectors. Let's compute area using coordinates to confirm 10+5√3. Coordinates: A=(4,0,0) M_F=(1,-√3,h/2) M_E=(-1,-√3,h/2) D=(-4,0,0) Vectors: AM_F = (-3, -√3, h/2) M_F M_E = (-2, 0, 0) (since x -2, y 0, z 0) M_E D = (-3, √3, -h/2)? D-M_E = (-4+1, 0+√3, -h/2)=(-3, √3, -h/2) D A = (8,0,0) Area = 1/2 | AM_F × M_F M_E + M_F M_E × M_E D + M_E D × D A + D A × AM_F |? Or compute as sum of triangle areas: Quadrilateral A-M_F-M_E-D = triangle A M_F M_E + triangle A M_E D? Diagonal A-M_E? Maybe easier: split along M_F-M_E? It's trapezoid, area = (8+2)/2 * height. We have height = distance between lines AD and M_E M_F in 3D = |component of vector AM_F perpendicular to both base direction (x-axis) and line direction (x-axis) in plane? Since both bases parallel x-axis. The distance between parallel lines with direction (1,0,0) through A and through M_F is the length of cross product of their direction (1,0,0) and vector from A to M_F divided by |direction| = sqrt( (y)^2 + z^2 )? Specifically line1: A + t(1,0,0) (x-axis at y=0,z=0). Line2: M_F + t(1,0,0) (y=-√3,z=h/2). The perpendicular vector between lines is the component of AM_F perpendicular to direction (1,0,0): AM_F = (-3,-√3,h/2); its perpendicular component = (0,-√3,h/2), length sqrt(3 + h^2/4). h^2/4 = 4(1+√3)=4+4√3, so length^2 =3+4+4√3=7+4√3=(2+√3)^2. So distance = 2+√3. Then area trapezoid = (8+2)/2 * (2+√3)=5(2+√3)=10+5√3. This is simpler. But wait h? h^2=16(1+√3). h^2/4=4+4√3. Then +3 =7+4√3 = (2+√3)^2? (2+√3)^2=4+4√3+3=7+4√3 yes. Good. So distance between bases = 2+√3. Nice. Therefore area = (8+2)/2 * (2+√3)=5(2+√3)=10+5√3. Need ensure no missing triangular part: If section polygon were triangle A-D-M_E? Let's verify M_F? The plane intersects edge SF at midpoint too, so M_F exists. But maybe M_F lies outside the section polygon? It is in P and on edge SF, inside pyramid? Edge SF from S to F, midpoint lies in face SFA? Actually midpoint of SF lies on edge SF, which belongs to faces SEF and SFA. It is inside pyramid boundary? Yes edge. Since P intersects face SEF along M_E-M_F; so M_F is on section boundary. So quadrilateral. However, let's consider if the plane also intersects the base at B or C? No because y=0 only A,D. But base plane intersection line AD; no other points. Could the plane intersect the top apex S? No because S y=0,z=h; equation y = -k z gives 0 = -k h ≠0. So no. Thus final answer likely 10+5√3. But let's not rush; maybe the "diagonal maior" could be a line segment connecting two opposite vertices but not necessarily the diameter? In hexagon, "diagonal maior" maybe the one that passes through center and is longer than other diagonals; yes length 8. But what if the base is a regular hexagon side 4, the "diagonal maior" might be the distance between opposite sides? Usually "diagonal maior" of a hexagon? In a hexagon, there are "diagonais maiores" connecting opposite vertices (3) and "diagonais menores" connecting vertices with one in between. So okay. Need maybe derive height? We need apex angle π/6 to find h. Let's detail in solution. Let's formulate solution in Portuguese. 1. Determinar altura da pirâmide. Base hexágono regular lado 4 => raio circunscrito R=4. Cada face lateral é triângulo isósceles com lados iguais (aresta lateral) e base 4; ângulo do vértice π/6. Seja l aresta lateral. Pela lei dos cossenos: 4^2 = l^2 + l^2 - 2l^2 cos(π/6) = 2l^2(1 - √3/2) => 16 = l^2(2 - √3) => l^2 = 16/(2-√3) = 16(2+√3) = 32+16√3. A altura h da pirâmide reta: h^2 + R^2 = l^2 => h^2 = l^2 -16 = 16+16√3 =16(1+√3). Alternatively maybe use face height? But okay. 2. Escolher coordenadas. Colocar base no plano z=0, centro na origem, vértices: A=(4,0,0), B=(2,2√3,0), C=(-2,2√3,0), D=(-4,0,0), E=(-2,-2√3,0), F=(2,-2√3,0), vértice S=(0,0,h). Diagonal maior AD. Precisamos plano σ passando por AD e paralelo a uma face lateral. Como AD é paralela aos lados BC e EF, podemos escolher a face SBC (ou SEF). Vamos escolher σ paralelo à face SBC. A face SBC tem plano y + (2√3/h) z =? Wait let's derive correctly. Face SBC plane: through S,B,C. Compute normal n=(0,4h,8√3) as above, equation 4h y +8√3(z-h)? Wait plane through S: n·(X-S)=0 => 0*(x)+4h(y-0)+8√3(z-h)=0 => 4h y +8√3 z -8√3 h=0 => h y +2√3 z =2√3 h => y + (2√3/h) z = 2√3. But earlier I wrote face SBC plane y = 2√3 - (2√3/h) z, equivalent. Let's check: divide by h: y + (2√3/h) z = 2√3. At S z=h: y=0 => 0+2√3=2√3 yes. At B z=0: y=2√3 =>2√3=2√3. Good. So face SBC plane: y + (2√3/h) z = 2√3. A plane parallel to this through A (and D) has same normal but passes through A: For point A(4,0,0), RHS =0 + (2√3/h)*0 =0. So plane σ: y + (2√3/h) z =0, or y = -(2√3/h) z. (If choosing face SEF, plane would be y - (2√3/h) z =0? Need check but area same; state by symmetry choose SBC.) Actually if choose SBC, plane through A: y + (2√3/h) z =0. Good. 3. Determinar interseção com arestas laterais: - Aresta SA: param S + t(A-S) = (4t,0,h(1-t)). Substituindo em σ: 0 + (2√3/h) h(1-t)=0 => 2√3(1-t)=0 => t=1 => A. - Aresta SB: (2t,2√3 t,h(1-t)): 2√3 t + (2√3/h)h(1-t)=2√3[t + 1 - t]=2√3 ≠0 => nenhum ponto (reta não intersecta σ dentro do segmento). Actually no intersection at all? Equation constant nonzero, so no. - Aresta SC: (-2t,2√3 t,h(1-t)): same constant => no. - Aresta SD: D? Param S + t(D-S)=(-4t,0,h(1-t)): 0 + (2√3/h)h(1-t)=0 => t=1 => D. - Aresta SE: S + t(E-S)=(-2t,-2√3 t,h(1-t)): y + (2√3/h)z = -2√3 t + (2√3/h)h(1-t)=2√3(1 - t - t?) Wait compute: -2√3 t + 2√3(1-t)=2√3(1 -2t). Set 0 => t=1/2. Ponto M_E=(-1,-√3,h/2). - Aresta SF: (2t,-2√3 t,h(1-t)): -2√3 t +2√3(1-t)=2√3(1-2t)=0 => t=1/2 => M_F=(1,-√3,h/2). Thus section polygon has vertices A, M_F, M_E, D (order? Need justify: On face SFA, σ intersects in segment A-M_F; on face SEF, M_F-M_E; on face SDE, M_E-D; na base, D-A. Therefore quadrilateral A M_F M_E D.) Wait check face SFA: contains A,F,S. P intersects at A and M_F? Since M_F lies on SF, yes segment A-M_F (not A-F). Face SDE: D-M_E. Face SEF: M_F-M_E. Good. 4. Calcular área. Observe que AD and M_E M_F são paralelos (both paralelos ao eixo x / lado BC). Comprimentos: AD=8; M_E M_F = 2 (segmento que une pontos médios de SE e SF, metade de EF=2? Actually M_E M_F = half of EF? EF length 4, so M_E M_F=2). A distância entre essas duas retas paralelas no plano da seção é a distância de A à reta M_E M_F (perpendicular comum). Vetor AM_F = (-3, -√3, h/2). A direção das retas é (1,0,0). A componente perpendicular de AM_F à direção é (0,-√3,h/2), cujo módulo é sqrt(3 + h^2/4). Usando h^2=16(1+√3): h^2/4=4+4√3, então 3 + h^2/4 = 7+4√3 = (2+√3)^2. Logo altura = 2+√3. Área trapézio = (AD + M_E M_F)/2 * altura = (8+2)/2 * (2+√3)=5(2+√3)=10+5√3. Alternatively if section were the other parallel face (SEF), symmetric gives same area. Mention. Need maybe justify M_E M_F=2: M_E and M_F are midpoints of SE and SF, so segment is base média in triangle SEF, parallel to EF and length EF/2=2. Also AD=8. Maybe also compute h^2 differently? Let's check h^2 = L^2 - R^2 = 32+16√3 -16=16+16√3 =16(1+√3). Then h^2/4=4(1+√3)=4+4√3. Good. Let's ensure no arithmetic mistake: Law of cos: AB^2 = l^2 + l^2 - 2l^2 cos(π/6). cos30=√3/2. So 16=2l^2(1 - √3/2)=2l^2 - √3 l^2 = l^2(2 - √3). l^2=16/(2-√3)=16(2+√3)/(4-3)=16(2+√3)=32+16√3. Yes. Height: right pyramid with apex above center; distance from center to vertex R? For regular hexagon side 4, circumradius = side =4. So base vertex distance from center =4. Then h^2 + R^2 = l^2 => h^2= l^2 -16 =16+16√3. Yes. Potential issue: A face lateral is isosceles with apex angle at S = π/6. In triangle SAB, sides SA=SB=l, base AB=4. The apex angle is at S, so opposite side AB. Law of cos: AB^2 = SA^2 + SB^2 -2 SA SB cos angle ASB =2l^2(1 - cosπ/6)=2l^2(1-√3/2). Correct. Now plane σ parallel to SBC. Let's verify equation: Face SBC normal? We computed n=(0,4h,8√3). A plane parallel has same normal. Through A: n·(X-A)=0 => 4h(y-0)+8√3(z-0)=0 => h y +2√3 z=0 => y + (2√3/h) z=0. Correct. But wait face SBC plane itself: n·(X-S)=0 => 4h(y-0)+8√3(z-h)=0 => 4h y +8√3 z =8√3 h => divide 4h: y + (2√3/h) z =2√3. Yes. So parallel plane through A has RHS 0. Good. When finding intersection with edge SB, plugging h y +2√3 z = h*(2√3 t)+2√3*h(1-t)=2√3 h [t +1 -t]=2√3 h ≠0. Good. Edge SC same? SC: y=2√3 t, z=h(1-t): h*2√3 t +2√3*h(1-t)=2√3 h ≠0. Edge SE: y=-2√3 t, z=h(1-t): -2√3 h t + 2√3 h(1-t)=2√3 h(1-2t)=0 => t=1/2. Edge SF: y=-2√3 t, z=h(1-t): same t=1/2? Wait SF: F=(2,-2√3,0). Param S + t(F-S)=(2t,-2√3 t,h(1-t)). y=-2√3 t, z=h(1-t). Plug h*(-2√3 t)+2√3*h(1-t)=2√3 h(1 -2t)=0 => t=1/2. Yes M_F=(1,-√3,h/2). Edge SD: D=(-4,0,0): t=1. Edge SA: t=1. Good. Intersection with face SFA: Contains A and M_F. Is segment A-M_F inside face? Yes, A and M_F are on edges SA? Wait M_F on edge SF, A on edge SA and base AD. In triangle SFA, segment from A to a point on SF lies inside triangle (except endpoints). Good. Face SDE: D and M_E on SE; segment D-M_E inside triangle SDE. Face SEF: M_F-M_E inside triangle SEF. Base: A-D. So polygon A-M_F-M_E-D. Now area calculation. Need be careful: The quadrilateral A-M_F-M_E-D in plane σ maybe not exactly with bases AD and M_E M_F? AD and M_E M_F are both parallel to x-axis? M_E M_F vector = (2,0,0) yes parallel to x-axis (1,0,0). AD vector=(8,0,0) also x-axis. Yes both parallel. So trapezoid. Distance between lines: Take vector from A to M_F: (-3, -√3, h/2). Its component perpendicular to x-axis is (0,-√3,h/2). Its length = sqrt(3 + h^2/4). Is this the distance between the infinite lines? For two parallel lines in 3D with direction u=(1,0,0), distance = |(P2-P1) × u| / |u|. Compute (AM_F) × (1,0,0) =? AM_F=(-3,-√3,h/2). Cross: i: (-√3)*0 - (h/2)*0=0 j: -( (-3)*0 - (h/2)*1 ) = h/2? Wait formula u×v: cross = (u2*0 - u3*0, u3*1 - u1*0, u1*0 - u2*1) = (0, h/2, √3?) Let's compute: v=(1,0,0), u=AM_F. u×v = (u2 v3 - u3 v2, u3 v1 - u1 v3, u1 v2 - u2 v1) = ((-√3)*0 - (h/2)*0, (h/2)*1 - (-3)*0, (-3)*0 - (-√3)*1) = (0, h/2, √3). Length = sqrt(h^2/4 +3). Yes same. Good. So height = sqrt(h^2/4 +3)=2+√3. Area = ((8+2)/2)*(2+√3)=5(2+√3). Good. Potential alternative: If the section plane is parallel to face SEF, the section is A-M_B-M_C-D where M_B/M_C midpoints of SB/SC; bases AD=8, M_B M_C=2; height same? Compute vector AM_B = (1-4, √3-0, h/2-0)=(-3,√3,h/2); parallel component difference perpendicular length sqrt(3 + h^2/4)=same. Yes. Thus final answer. Need present final in Portuguese with steps. The final line format: "Resposta final: ...". Since question only one answer, maybe "Resposta final: 10 + 5√3". But could mention área da seção. Use "Resposta final: 10 + 5√3" or "5(2+√3)". The instruction says show development, end with line. So final answer line. Let's craft solution elegantly. Potential issue: The problem statement says "As faces laterais dessa pirâmide são triângulos isósceles cujo ângulo do vértice superior é π/6." In a right pyramid with regular base, lateral faces are congruent; but the angle at "vértice superior" (apex of pyramid) of each lateral face is π/6. Yes. Let's maybe derive h more directly using base apothem? Another way: Lateral face height (slant height) from S to midpoint of side? Let m = apótema da pirâmide (altura da face lateral). In triangle with base 4 and apex angle 30°, the height from apex to base midpoint splits base into 2, apex angle into 15°. Then tan(15°)= opposite/adjacent = 2 / m? Wait triangle: apex angle 30°, height to base m, half-base=2. tan(15°)= (half-base)/m = 2/m => m = 2 / tan(15°). tan15=2-√3, so m=2/(2-√3)=2(2+√3)=4+2√3. Then slant height m. The apótema da base (distance from center to side) = 2√3? Regular hexagon apothem = (side√3)/2? Actually apothem = side * √3/2 = 2√3? For side 4, apothem = 2√3. Then pyramid height h satisfies m^2 = h^2 + apothem^2? Since slant height from S to midpoint of base edge; distance from center to side midpoint = apothem a=2√3; h perpendicular to base. m^2 = h^2 + a^2. Compute m=4+2√3? Square = (4+2√3)^2 =16 +16√3+12=28+16√3? Wait (4+2√3)^2=16+16√3+12=28+16√3. Then h^2 = m^2 - a^2 =28+16√3 -12 =16+16√3= same. Good. But our previous l^2 maybe different; okay. Could use this to verify height. Actually lateral edge l? From apex to vertex length l; face triangle sides l,l, base 4; apex angle 30. We computed l^2=32+16√3. Then h^2 = l^2 - R^2=16+16√3. Same. Maybe present one method. Let's also consider if the section plane could be through the "diagonal maior" but parallel to a lateral face that is not opposite? We should state: "Como a diagonal AD é paralela às arestas BC e EF da base, as únicas faces laterais paralelas a ela são SBC e SEF; por simetria ambas dão a mesma área. Escolhemos SBC." This addresses ambiguity. Let's verify: Diagonal AD direction horizontal; sides parallel to AD are BC and EF? Also maybe? Sides: AB angled, CD angled? Let's check CD from C(-2,2√3) to D(-4,0) vector (-2,-2√3) not horizontal. DE not; FA vector (2,2√3)? not. So only BC and EF. Good. Let's maybe compute "diagonal maior" passes through center; line AD equation y=0,z=0. Now, potential challenge: The plane σ: y + (2√3/h) z=0 contains line AD? For any point on AD: y=0,z=0 =>0=0. Yes. But does it contain the entire diagonal segment? Yes line infinite. Need perhaps prove section is quadrilateral not triangle because plane contains AD and intersects edges SE,SF at midpoints. If h large? It does. The intersection with edge SE and SF at same parameter? Because by symmetry. Let's consider if the plane might also intersect the edge SA at A and edge SD at D, but what about edge? We included. Let's maybe draw mental: The section plane is parallel to face SBC; it cuts the pyramid along quadrilateral A-M_F-M_E-D, where M_F and M_E are midpoints of SF and SE. The section is a trapezoid with bases AD and M_E M_F, both parallel to BC/EF. Good. Area calculation: Base maior = AD = 8. Base menor = M_E M_F = 2 (metade de EF=4). Altura = distância entre AD e M_E M_F = |projeção de AM_F perpendicular a AD| = sqrt( (-√3)^2 + (h/2)^2 ) = sqrt(3 + h^2/4) = sqrt(3 + 4(1+√3)) = sqrt(7+4√3) = 2+√3. Área = (8+2)/2 * (2+√3)=5(2+√3)=10+5√3. Need be careful: h^2/4 = 4(1+√3)=4+4√3. Then 3 + that =7+4√3 = (2+√3)^2. Yes. Let's formulate final answer with units? Area unit square; since side in units, area square units. Answer "10 + 5√3". Let's now produce final response in Portuguese with steps. Desired oververbosity 5, so moderate detailed. Potential final line: "Resposta final: \(10+5\sqrt3\)" Maybe include "área da seção = 10 + 5√3" in final. Let's write.

**Analyzing Pyramid Geometry** I'm currently focused on dissecting the geometric properties of this right pyramid. Specifically, I'm working through the implications of a regular hexagonal base with a side length of 4, and the isosceles triangular faces with their given vertex angle. My next steps involve translating these geometrical facts into actionable calculations for the ITA exam problem. **Calculating Section Area** I've been working through the geometry of a right pyramid with a regular hexagonal base of side 4. My current focus is on defining a plane section that passes through the longer diagonal of the base and is parallel to a lateral face. The objective is to then compute the area of this specific section. **Deriving Edge Length** I've determined the lateral edge length ($L$) of the pyramid using the given isosceles triangular face properties. This calculation involved applying the Law of Cosines and trigonometric identities, leading to $L = 2(\sqrt{6}+\sqrt{2})$. I am now proceeding to verify this result and use it to find the pyramid's height. **Testing Diagonal-Face Pairs** I'm now exploring combinations of the pyramid's major diagonals with its lateral faces. The goal is to identify which diagonal, when lying within a plane, can be parallel to a given lateral face. This involves analyzing vector directions and understanding the geometric constraints for such parallelism. **Confirming Diagonal-Face Parallelism** I've confirmed that a major diagonal of the hexagonal base is indeed parallel to two lateral faces. Specifically, the diagonal $A_1 A_4$ is parallel to both face $V A_2 A_3$ and face $V A_5 A_6$. This significantly clarifies the geometric relationships needed for the upcoming calculations. **Exploring Section Plane Intersection** I'm now investigating whether a section plane, defined by containing a major diagonal and being parallel to a lateral face, actually intersects the pyramid. I've established the plane equation for a specific lateral face, $V A_2 A_3$, and am using this to derive the equation for the parallel section plane that contains the diagonal $A_1 A_4$. The next step is to check for intersection. **Verifying Section Plane** I'm re-evaluating the section plane equation. It appears my prior derivation for the plane parallel to face $V A_2 A_3$ might have led to a plane with $z < 0$ for positive $y$, which contradicts the pyramid's interior. I'm now verifying the plane parallel to $V A_5 A_6$, and it seems to correctly pass into the pyramid for positive $y$ values. **Confirming Sectional Equivalence** I've established that the section planes, whether parallel to face $V A_2 A_3$ or $V A_5 A_6$, are geometrically congruent. Both planes contain the diagonal $A_1 A_4$ and intersect the pyramid's interior, suggesting identical sectional areas. I'm now focused on confirming the specific edges intersected by the plane parallel to $V A_5 A_6$. **Finding Section Vertices** I've confirmed that the section plane parallel to face $V A_5 A_6$ and containing diagonal $A_1 A_4$ intersects edges $V A_2$ and $V A_3$ at their midpoints. I am now determining the remaining vertices of the section and will proceed to calculate its area. **Confirming Trapezoid Shape** I've confirmed the section is an isosceles trapezoid, with vertices $A_1, B_2, B_3, A_4$. I've verified that the base diagonal $A_1A_4$ and the segment connecting the midpoints of $VA_2$ and $VA_3$ are parallel, confirming the trapezoidal shape. I am now re-reading the original problem statement to ensure no details were missed. **Revising Diagonal-Face Pairings** I'm re-examining the relationship between major diagonals and lateral faces. My earlier conclusion that diagonal $A_1 A_4$ is parallel to faces $V A_2 A_3$ and $V A_5 A_6$ needs further scrutiny. I'm questioning if a diagonal can be parallel to a face that does not share a vertex with the diagonal's endpoints. **Confirming Sectional Mirroring** I've established that the section plane, parallel to $V A_5 A_6$ and containing diagonal $A_1 A_4$, intersects the pyramid's edges $V A_2$ and $V A_3$ at their midpoints. This results in a section geometrically identical to the one derived earlier, simply mirrored. **Revising Geometric Parallelism** I'm re-evaluating my assumption about diagonal-face parallelism. It appears a major diagonal cannot be parallel to a face if it shares a vertex with that face. This leads me to focus on faces not sharing vertices with the diagonal, specifically faces $V A_2 A_3$ and $V A_5 A_6$, whose edges are parallel to the diagonal $A_1 A_4$. **Confirming Unique Sectional Area** I've now confirmed that any major diagonal is parallel to exactly two lateral faces, and due to symmetry, all such pairings result in congruent sections. This means the calculated section area will be unique and consistent, regardless of which diagonal-face pair is chosen for analysis. The next step is to finalize the area computation. **Calculating Trapezoid Height** I've confirmed the section is an isosceles trapezoid and calculated the coordinates for its vertices. My current focus is on determining the height of this trapezoid by finding the distance between the midpoints of its parallel bases. I'm about to compute the value of $h^2$ needed for this calculation. **Calculating Trapezoid Bases** I've confirmed the section is an isosceles trapezoid and have the coordinates of its vertices. My current focus is on accurately calculating the lengths of its parallel bases. I am about to use the distance formula to find these lengths, ensuring precision for the final area calculation. **Deriving Edge Length** I've successfully derived the lateral edge length ($L$) of the pyramid using two distinct methods, both yielding $L = 2(\sqrt{6} + \sqrt{2})$. This confirms the accuracy of my calculations and I am now proceeding to determine the pyramid's height. **Simplifying Trapezoid Height** I've successfully computed the square of the trapezoid's height, $H_{\text{trap}}^2 = 7 + 4\sqrt{3}$, which simplifies beautifully to $(2 + \sqrt{3})^2$. This elegant simplification provides strong confirmation of my calculations. I'm now ready to calculate the lengths of the trapezoid's bases to find the final area. **Checking Diagonal Ambiguity** I'm re-examining the interpretation of "a diagonal maior." I've confirmed that a regular hexagon has three congruent major diagonals, each passing through the center. My calculations assumed one of these, and the symmetry implies the area will be the same for any choice. I'm now proceeding to finalize the area calculation. **Validating Sectional Form** I'm double-checking if the derived section is definitively a trapezoid. I'm scrutinizing the plane's intersections with the pyramid's edges and vertices to ensure no unintended cuts or forms are introduced, confirming $A_1$ and $A_4$ lie on the plane, while others indicate where the plane enters or leaves the pyramid. **Confirming Intersection Points** I've meticulously checked the intersections of my section plane with all base and lateral edges. I've confirmed that the plane contains the base diagonal $A_1 A_4$ and precisely intersects the lateral edges $V A_2$ and $V A_3$ at their respective midpoints. This definitively defines the boundaries of my sectional shape. **Revising Sectional Geometry** I've realized my understanding of the section's vertices was incomplete. The plane parallel to face $V A_2 A_3$ passing through $A_1 A_4$ actually intersects edges $V A_5$ and $V A_6$ at their midpoints, forming trapezoid $A_1 A_4 B_5 B_6$. This yields the same area as the previous calculation. I am now re-evaluating the problem's wording concerning diagonal-face parallelism to ensure no interpretations were missed. **Revising Diagonal-Base Relationship** My previous assumption about how a diagonal relates to the base and center is being revisited. I'm reconsidering if every major diagonal of the hexagonal base, by definition, must pass through the center of the base, which I am currently assuming to be the origin. This clarification is crucial for defining the section plane. **Confirming Lateral Edge Length** I've now successfully derived the lateral edge length ($L$) of the pyramid using two independent methods, both converging on the value $L = 2(\sqrt{6} + \sqrt{2})$. This consistency is highly reassuring, and I'm proceeding to determine the pyramid's height. **Calculating Trapezoid Bases** I've confirmed the section is an isosceles trapezoid and have the coordinates of its vertices. My current focus is on accurately calculating the lengths of its parallel bases. I am about to use the distance formula to find these lengths, ensuring precision for the final area calculation. **Calculating Trapezoid Height** I've confirmed the section is an isosceles trapezoid and calculated the coordinates for its vertices. My current focus is on determining the height of this trapezoid by finding the distance between the midpoints of its parallel bases. I'm about to compute the value of $h^2$ needed for this calculation. **Confirming Intersection Points** I've meticulously checked the intersections of my section plane with all base and lateral edges. I've confirmed that the plane contains the base diagonal $A_1 A_4$ and precisely intersects the lateral edges $V A_2$ and $V A_3$ at their respective midpoints. This definitively defines the boundaries of my sectional shape. **Revising Sectional Geometry** I've realized my understanding of the section's vertices was incomplete. The plane parallel to face $V A_2 A_3$ passing through $A_1 A_4$ actually intersects edges $V A_5$ and $V A_6$ at their midpoints, forming trapezoid $A_1 A_4 B_5 B_6$. This yields the same area as the previous calculation. I am now re-evaluating the problem's wording concerning diagonal-face parallelism to ensure no interpretations were missed. **Revising Diagonal-Base Relationship** My previous assumption about how a diagonal relates to the base and center is being revisited. I'm reconsidering if every major diagonal of the hexagonal base, by definition, must pass through the center of the base, which I am currently assuming to be the origin. This clarification is crucial for defining the section plane. **Simplifying Trapezoid Height** I've successfully computed the square of the trapezoid's height, $H_{\text{trap}}^2 = 7 + 4\sqrt{3}$, which simplifies beautifully to $(2 + \sqrt{3})^2$. This elegant simplification provides strong confirmation of my calculations. I'm now ready to calculate the lengths of the trapezoid's bases to find the final area. **Checking Diagonal Ambiguity** I'm re-examining the interpretation of "a diagonal maior." I've confirmed that a regular hexagon has three congruent major diagonals, each passing through the center. My calculations assumed one of these, and the symmetry implies the area will be the same for any choice. I'm now proceeding to finalize the area calculation. **Validating Sectional Form** I'm double-checking if the derived section is definitively a trapezoid. I'm scrutinizing the plane's intersections with the pyramid's edges and vertices to ensure no unintended cuts or forms are introduced, confirming $A_1$ and $A_4$ lie on the plane, while others indicate where the plane enters or leaves the pyramid. **Confirming Lateral Edge Length** I've now successfully derived the lateral edge length ($L$) of the pyramid using two independent methods, both converging on the value $L = 2(\sqrt{6} + \sqrt{2})$. This consistency is highly reassuring, and I'm proceeding to determine the pyramid's height.

**Analyzing Problem Details** I am currently dissecting the intricacies of a geometry problem from the ITA exam. My focus is on understanding the properties of a right pyramid with a regular hexagonal base of side length 4, and triangular faces. **Exploring Plane Intersections** I'm currently examining a plane that slices through a right hexagonal pyramid. This plane is defined by containing a major diagonal of the base and running parallel to one of the lateral faces. My focus is on determining which specific lateral face it's parallel to, and the implications for the geometry of the resulting section. **Visualizing Intersections** I'm visualizing how a plane, defined by a base diagonal and parallel to a lateral face, cuts through the hexagonal pyramid. I'm considering coordinate systems and pure geometry to map these intersections and understand the shape of the resulting cross-section, particularly concerning the lateral edges. **Determining Cross-Section Shape** I'm pinpointing the polygon formed by the plane's intersection. I've deduced that the plane, containing a base diagonal and parallel to a lateral face, cuts through the pyramid, generating a specific polygonal cross-section. I'm currently identifying its vertices and edges. **Identifying Intersection Points** I am now focusing on the specific intersection points generated by the plane. I've determined that the plane intersects the lateral edges VA and VD at their base vertices, A and D, respectively. It also intersects VE and VF at new points, E' and F', on those edges. **Confirming Shape Properties** I've confirmed the cross-section is an isosceles trapezoid, $ADE'F'$. The parallelism of the base diagonal $AD$ to the edge $EF$ dictates that the intersection $E'F'$ is also parallel to $AD$ and $EF$. This geometric relationship, coupled with symmetry, solidifies the trapezoidal form. **Proving Midpoints** I'm confirming that $E'$ and $F'$ are indeed midpoints of $VE$ and $VF$ respectively. The parallelism of $E'F'$ to $EF$ through the midpoint of the pyramid's apothem $VN$ strongly suggests this, making $E'F'$ a midline. **Calculating Lateral Face Height** I am calculating the height ($VM$) of a lateral face triangle ($\triangle VBC$), finding it to be $4\sqrt{3}$. This is derived from the isosceles triangle's base ($BC=4$) and apex angle ($30^\circ$). This value is crucial for determining the trapezoid's height. **Verifying Trapezoid Height** I've confirmed that the segment $OP$ represents the height of the isosceles trapezoid $ADE'F'$. This insight means I don't need the pyramid's total height ($h$), only the lateral face height, which I've already computed. **Finding Trapezoid Base Lengths** I'm calculating the lengths of the parallel bases of the trapezoid $ADE'F'$. The base $AD$ is a major diagonal of the hexagonal base, so its length is 8. The other base, $E'F'$, has a length of 4, derived from its relationship to the pyramid's apothem and the $VM$ length. **Calculating Trapezoid Area** I'm now calculating the area of the isosceles trapezoid $ADE'F'$. With the base lengths $AD=8$ and $E'F'=4$, and the height $OP = 2\sqrt{3}$, I can now compute the final area of the cross-section. **Refining Altitude Calculations** I'm recalculating the lateral face altitude ($VM$) using trigonometry on $\triangle VMB$. I found $VM = 2 \cot(15^\circ) = 4 + 2\sqrt{3}$. This value leads to a trapezoid height of $OP = 2 + \sqrt{3}$. My previous calculation for $E'F'$ was incorrect. **Re-evaluating Assumptions** I'm re-reading the problem statement closely, questioning my previous interpretations. Specifically, I'm investigating the geometric constraint that the intersecting plane passes through a major base diagonal and is simultaneously parallel to a lateral face. My focus is on whether the choice of base diagonal and lateral face inherently implies a specific parallelism between them, or if there are other possibilities to consider. **Confirming Parallelism Rule** I've confirmed a key geometric rule: if a line in one plane is parallel to a second intersecting plane, it must also be parallel to their line of intersection. This solidifies my understanding that the base diagonal $AD$ must be parallel to the base edge of the lateral face the plane is parallel to, meaning the lateral faces $VBC$ or $VEF$. **Revising Lateral Face Calculations** I've recalculated the lateral face altitude ($VM$). Using $\tan(\pi/12) = 2 - \sqrt{3}$, I found $VM = 2/(2-\sqrt{3}) = 2(2+\sqrt{3}) = 4 + 2\sqrt{3}$. This correction significantly impacts the trapezoid's height and area. **Calculating Trapezoid Altitude** I'm focusing on the altitude of the trapezoid $ADE'F'$. Given the corrected lateral face height $VM = 4 + 2\sqrt{3}$, and knowing $OP$ is the midline of $\triangle VMN$, the trapezoid's altitude $OP$ is half of $VM$, resulting in $2 + \sqrt{3}$.
